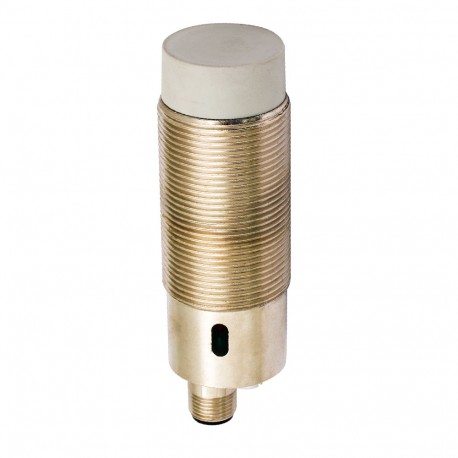

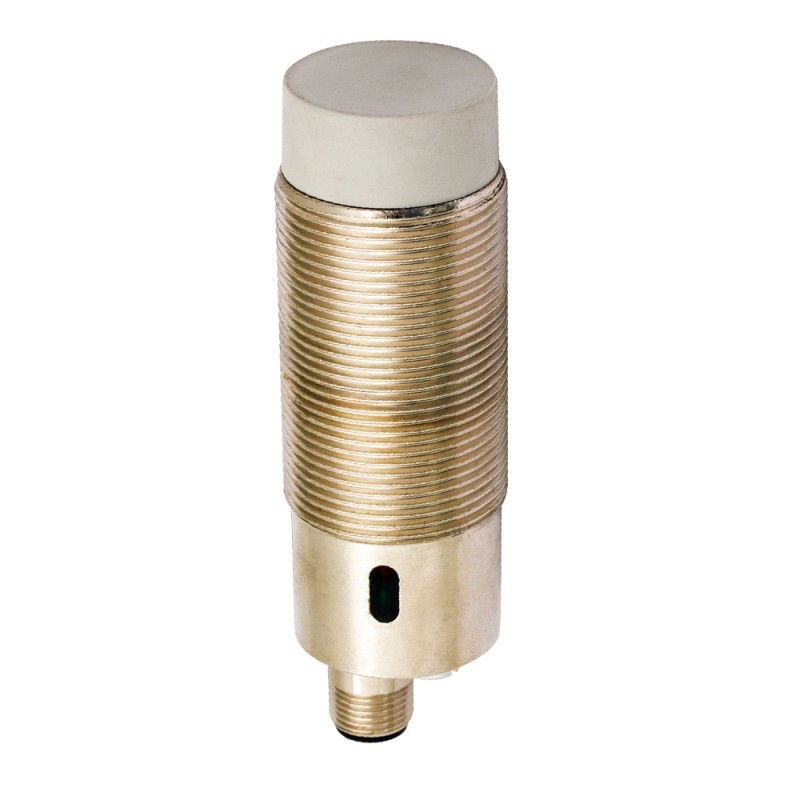

MICRO DETECTORS CT1/CN-2H CT1/CN-2H - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

CT1/CN-2H MICRO DETECTORS Capacitive sensor M30 unshielded NC/NPN plug M12

Reference: CT1/CN-2H

Manufacturer: MICRO DETECTORS

Description:

Capacitive sensor M30 unshielded NC/NPN plug M12
CT1/CN-2H Capacitive sensor M30 unshielded NC/NPN conn. M12

Categories:

  • MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 118,09 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 6-8 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical features

Nominal sensing distance2…20mm
Thermal drift of Sr< 20%
Repeat Accuracy10%
Sensitivity adjustmentYes
Hysteresis≤ 20%

Outputs

Output typeNPN
Output FunctionNC
Switching frequency100Hz

Electrical data

Operating Voltage10 - 30Vdc
No-Load supply current8mA
Load current≤ 200mA
Leakage current≤ 10mA
Output voltage drop0,75/1,8V max @ IL=10/200 mA
Max ripple content≤10%
LED indicatorsGreen LED power, red LED (object detected)
Time delay before availability100ms
Short-circuit protectionYes, autoreset
Reverse Polarity ProtectionYes
Impulsive Overvoltage ProtectionYes

Mechanical data

DimensionsM30 / L = 98mm
MountingUnshielded
Weight185g
Housing Materialnickel brass
ConnectionsM12 plug
Active Head MaterialPBT
Tightening torque50Nm
Operating temperature-25°C…+70°C

Test/Approvals

ApprovalsCEcULus
EMC compatibilityIEC 60947-5-2
Shocks and vibrationsVibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protectionIP 65

Accessories

Supplied Accessoriesscrew driver, 2 x M30 nuts

Electrical diagrams of the connections


Connector


Dimension (mm)



Response curves

Area di rilevamento


Regolazione della sensibilità
