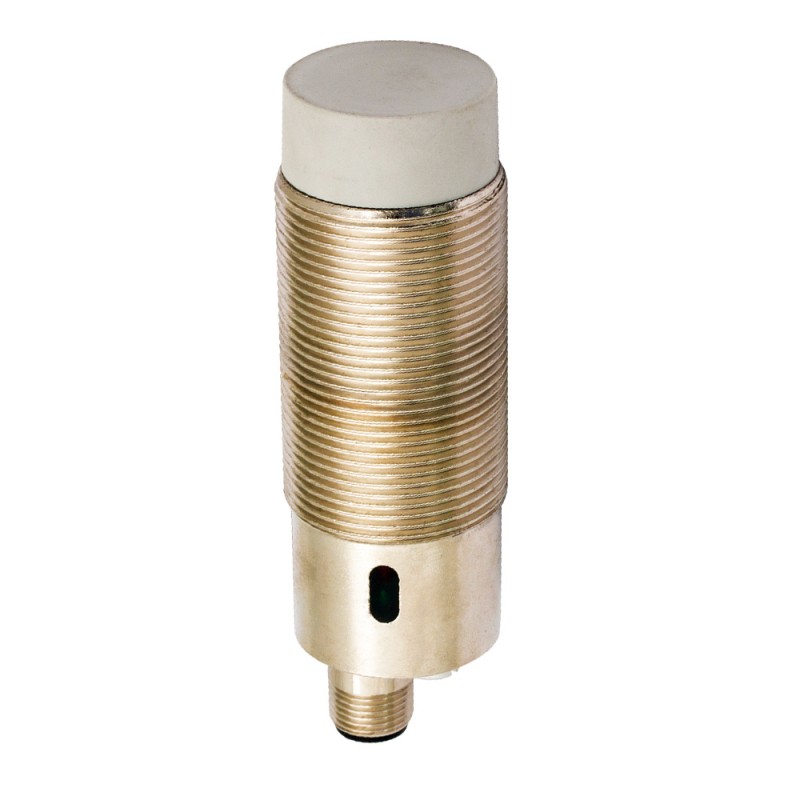

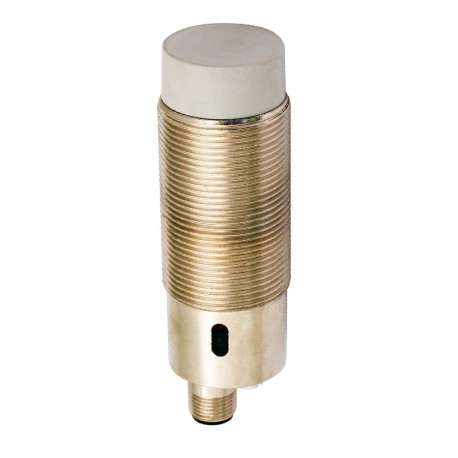

CT1/AN-2H MICRO DETECTORS Capacitive sensor M30 unshielded NO/NPN plug M12
CT1/AN-2H
MICRO DETECTORS
Capacitive sensor M30 unshielded NO/NPN plug M12
CT1/AN-2H Capacitive sensor M30 unshielded NO/NPN conn. M12
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 2…20mm | |
| Thermal drift of Sr | < 20% | |
| Repeat Accuracy | 10% | |
| Sensitivity adjustment | Yes | |
| Hysteresis | ≤ 20% | |
Outputs
| Output type | NPN | |
| Output Function | NO | |
| Switching frequency | 100Hz | |
Electrical data
| Operating Voltage | 10 - 30Vdc | |
| No-Load supply current | 8mA | |
| Load current | ≤ 200mA | |
| Leakage current | ≤ 10mA | |
| Output voltage drop | 0,75/1,8V max @ IL=10/200 mA | |
| Max ripple content | ≤10% | |
| LED indicators | Green LED power, red LED (object detected) | |
| Time delay before availability | 100ms | |
| Short-circuit protection | Yes, autoreset | |
| Reverse Polarity Protection | Yes | |
| Impulsive Overvoltage Protection | Yes | |
Mechanical data
| Dimensions | M30 / L = 98mm | |
| Mounting | Unshielded | |
| Weight | 185g | |
| Housing Material | nickel brass | |
| Connections | M12 plug | |
| Active Head Material | PBT | |
| Tightening torque | 50Nm | |
| Operating temperature | -25°C…+70°C | |
Test/Approvals
| Approvals | CEcULus | |
| EMC compatibility | IEC 60947-5-2 | |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 | |
| Degree of protection | IP 65 | |
Accessories
| Supplied Accessories | screw driver, 2 x M30 nuts | |
Electrical diagrams of the connections
Connector
Dimension (mm)
Response curves
Area di rilevamento
Regolazione della sensibilità
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes |
|
| Download general catalog |
|
