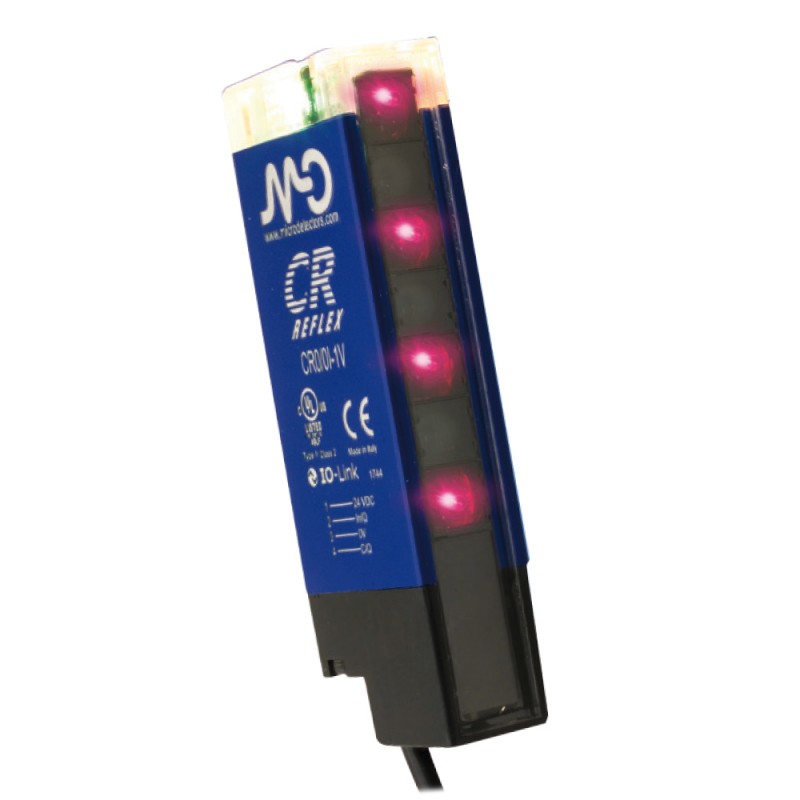

CR0/0T-1V MICRO DETECTORS Retroreflecive Polarized Area sensor h 69m, Sensing distance 4,5m Push Pull NO/NC ..
CR0/0T-1V
MICRO DETECTORS
Retroreflecive Polarized Area sensor h = 69m, Sensing distance 4,5m Push Pull NO/NC pig-tail M12 4pin
CR0/0T-1V Retroreflective Polarized Area sensor h = 69mm, Sn 4,5m Push Pull NO/NC pig-tail M12 4pin
Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 0,2 … 4,5m (with RL106G) | |
| Thermal drift of Sr | ≤10% | |
| Beams space | 10mm | |
| controlled height | 69mm | |
| minimum detectable object | 3…6mm @ 2m RL106G - 3…10mm @ 4,5m RL106G | |
| number of rays | 6 | |
| Sensitivity adjustment | Teach in: fine < 3s; standard > 6s | |
Application
| Function Principle | Retroreflective polarized area sensor | |
Outputs
| Output type | Push-Pull | |
| Output Function | NO/NC | |
| Switching frequency | 400Hz | |
Electrical data
| Operating Voltage | 16…30Vdc | |
| No-Load supply current | 100mA | |
| Load current | 100mA | |
| Leakage current | ≤100μA | |
| Output voltage drop | 3Vdc @ 100mA | |
| Max ripple content | ≤ 10% | |
| LED indicators | green: power supply-alignment; red: dark/light status | |
| Time delay before availability | 300ms | |
| Short-circuit protection | Yes (autoreset) | |
| Reverse Polarity Protection | Yes | |
| Emission | Red | |
| Interference to external light | 5000lux (fluorescent lamp); 50000lux (sun light) | |
| Impulsive Overvoltage Protection | Yes | |
Mechanical data
| Dimensions | 107mm x 20mm x 36mm | |
| Weight | 100g | |
| Housing Material | Aluminim | |
| Connections | M12 plug | |
| Active Head Material | PMMA | |
| Operating temperature | -10°C…+ 55° C (without freeze) | |
Test/Approvals
| Approvals | CE, cULus | |
| EMC compatibility | EN 60947-5-2 | |
| Shocks and vibrations | IEC EN 60947-5-2 / 7.4 | |
| Degree of protection | IP67 | |
Accessories
| Supplied Accessories | RL106G reflector + fixing kit (ST151) | |
Electrical diagrams of the connections
Connector
Dimension (mm)
Datasheet - PDF
