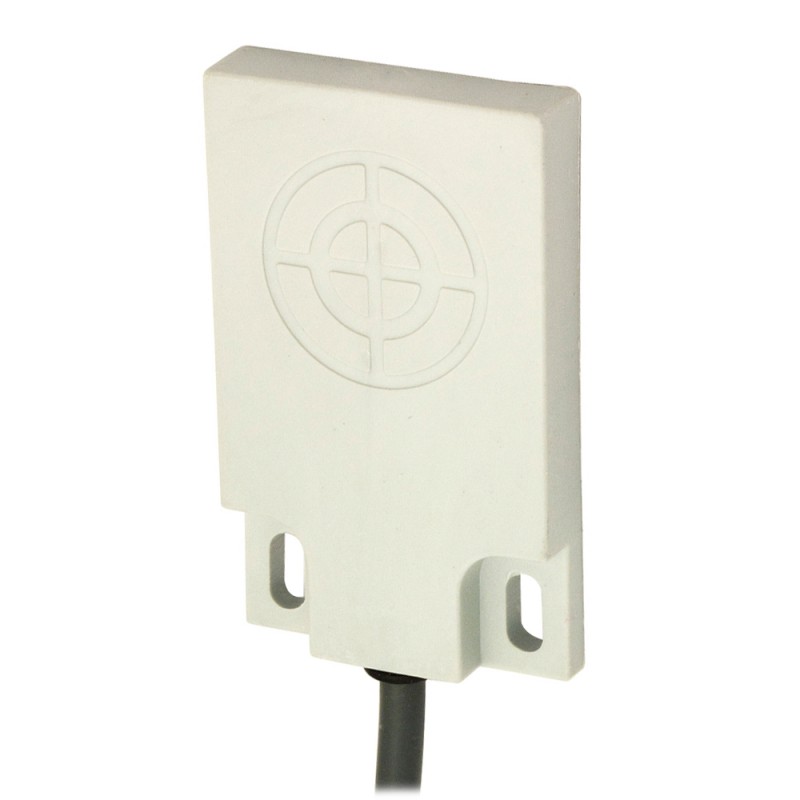

CQ50/AP-3A MICRO DETECTORS Capacitive sensor cubic Plastic DC 7mm PNP NO cable 2m 90°
CQ50/AP-3A
MICRO DETECTORS
Capacitive sensor cubic Plastic DC 7mm PNP NO cable 2m 90°
Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 7mm | |
| Thermal drift of Sr | < 20% | |
| Repeat Accuracy | 5% | |
| Sensitivity adjustment | NO | |
| Hysteresis | ≤ 20% | |
Outputs
| Output type | PNP | |
| Output Function | NO | |
| Switching frequency | 10Hz | |
Electrical data
| Operating Voltage | 10-30Vdc | |
| No-Load supply current | ≤10mA | |
| Load current | ≤50mA | |
| Leakage current | ≤ 100µA | |
| Output voltage drop | 1,5Vmax @ IL=50mA | |
| Max ripple content | ≤10% | |
| Time delay before availability | ≤100ms | |
| Short-circuit protection | Yes, autoreset | |
| Reverse Polarity Protection | Yes | |
| Impulsive Overvoltage Protection | Yes | |
Mechanical data
| Dimensions | 50x30x7mm | |
| Mounting | Shielded | |
| Weight | 70g | |
| Housing Material | noryl | |
| Connections | 2m PVC cable | |
| Active Head Material | noryl | |
| Operating temperature | 0…60°C (without freeze) | |
| Storage temperature | -30°C…+75°C | |
Test/Approvals
| Approvals | CE | |
| EMC compatibility | IEC 60947-5-2 | |
| Degree of protection | IP 67 (EN60529) NEMA 1,3,4,6,13 | |
Electrical diagrams of the connections
Dimension (mm)
