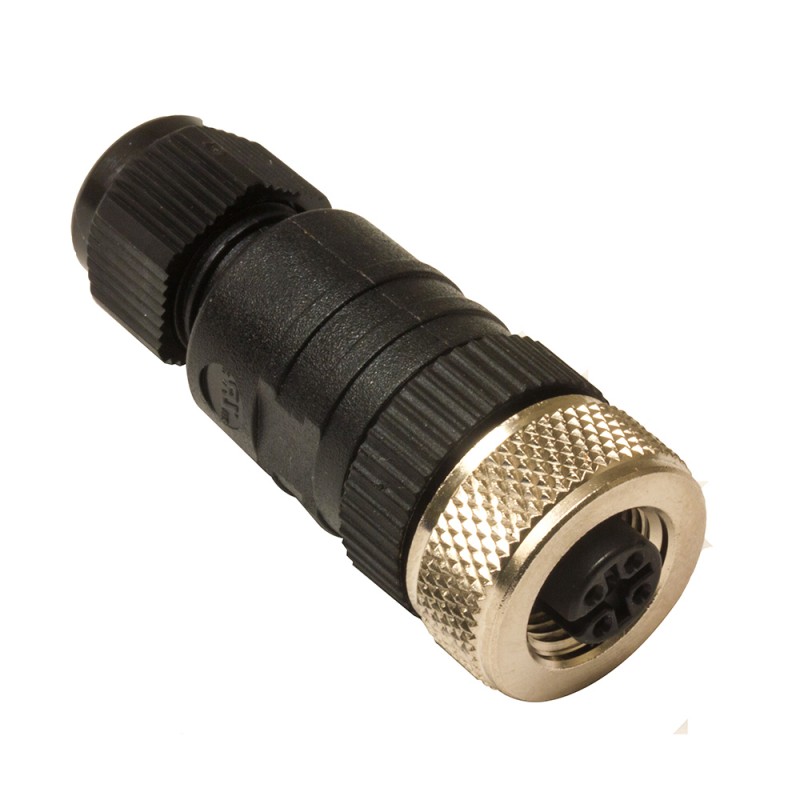

CL12/0H-00A MICRO DETECTORS Connector plug with terminals M12 5 poles female Axial
CL12/0H-00A
MICRO DETECTORS
Connector plug with terminals M12 5 poles female Axial
CL12/0H-00A Connector Conn. with terminals M12 5 poles female Axial
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
Application
| Fixing | screw terminals | |
Electrical data
| Rated current | 4 A | |
| Wires | 5 | |
| Insulation resistance | ≥ 100 mΩ | |
| Contact resistance | ≤ 5 mΩ | |
| Rated voltage | 250 V | |
Mechanical data
| Operating temperature | -25 °C ... 90 °C | |
| Plug | M12 | |
| Outer diameter | 3 mm ... 6,5 mm | |
| Head type | Axial | |
| Stripping lenght of the sheath | 20 mm | |
| Conductors section | 5 | |
| Model | Female | |
Test/Approvals
| Degree of protection | IP67 | |
Dimension (mm)
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes |
|
| Download general catalog |
|
