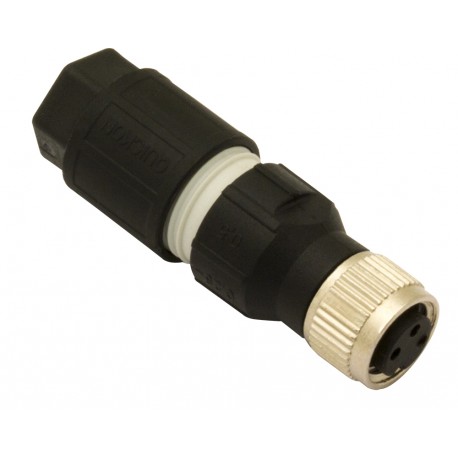

MICRO DETECTORS CL08/0A-00A CL08/0A-00A - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

CL08/0A-00A MICRO DETECTORS Connector plug M8 female 3 poles Axial, screw connection

Reference: CL08/0A-00A

Manufacturer: MICRO DETECTORS

Description:

Connector plug M8 female 3 poles Axial, screw connection
CL08/0A-00A Connector Conn. M8 female 3 poles Axial, screw connection

Categories:

  • MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 25,44 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-6 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Technical features

Application

Fixingscrew terminals

Electrical data

Rated currenta 40°C 4 A
Wires3
Insulation resistance≥ 100 MΩ
Contact resistance≤ 5 mΩ
Rated voltage60 V (3 plugs) 30 V (4 plugs)

Mechanical data

Connectionsa vite
Tightening torque0,2 Nm (M8 nut)
Operating temperature-40 °C ... 85 °C
PlugM8
Outer diameter3,5 mm ... 5 mm
Head typeAxial
Stripping lenght of the sheath12 mm
Gasket material≤ 5 mΩ
Wire isolation≥ 100 MΩ
Conductors section0,14 mm²...0,5 mm²
ModelFemale

Test/Approvals

Degree of protectionIP67

Dimension (mm)
