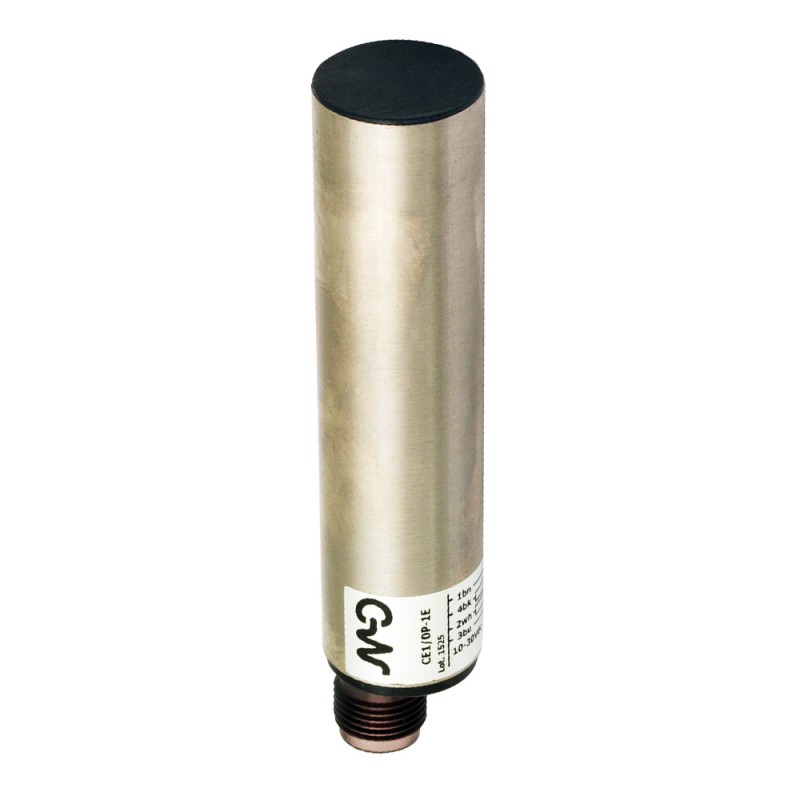

CE1/0P-1E MICRO DETECTORS Capacitive sensor D20 shielded PNP plug M12
CE1/0P-1E
MICRO DETECTORS
Capacitive sensor D20 shielded PNP plug M12
CE1/0P-1E Capacitive sensor D20 shielded PNP conn. M12
Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 1,5…10mm | |
| Thermal drift of Sr | < 20% | |
| Repeat Accuracy | 5% | |
| Sensitivity adjustment | Yes | |
| Hysteresis | ≤ 20% | |
Outputs
| Output type | PNP | |
| Output Function | NO + NC | |
| Switching frequency | 300Hz | |
Electrical data
| Operating Voltage | 10 - 30Vdc | |
| No-Load supply current | 17mA | |
| Load current | ≤ 100mA | |
| Leakage current | ≤ 1μA | |
| Output voltage drop | 1,5V - max. IL=100mA | |
| Max ripple content | ≤15% | |
| LED indicators | Yellow LED (object detected) | |
| Short-circuit protection | Yes, autoreset | |
| Reverse Polarity Protection | Yes | |
| Impulsive Overvoltage Protection | Yes | |
Mechanical data
| Dimensions | ø20 / L = 92mm | |
| Mounting | Shielded | |
| Weight | 80g | |
| Housing Material | stainless steel | |
| Connections | M12 plug | |
| Active Head Material | LCP | |
| Operating temperature | -25°C…+70°C | |
Test/Approvals
| Approvals | CEcULus | |
| EMC compatibility | IEC 60947-5-2 | |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 | |
| Degree of protection | IP 65 | |
Accessories
| Supplied Accessories | screw driver | |
Connector
Dimension (mm)
Response curves
Area di rilevamento
Regolazione della sensibilità
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 79 Mbytes |
|
| Download general catalog |
|
