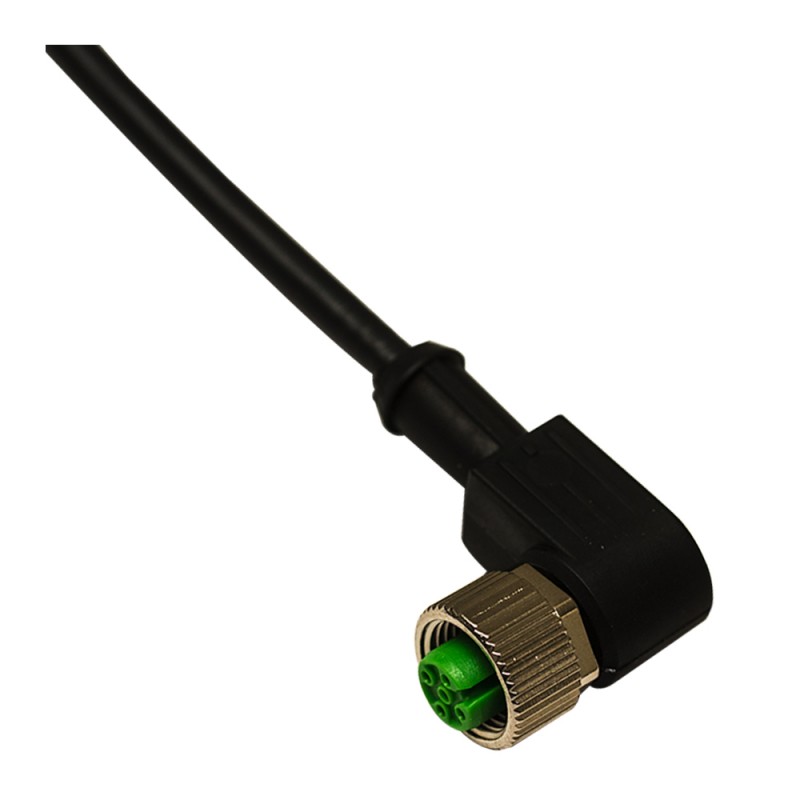

CD12M/0B-070C1 MICRO DETECTORS Connector Female M12 90° 4 poles cable PVC 7m
CD12M/0B-070C1
MICRO DETECTORS
Connector Female M12 90° 4 poles cable PVC 7m
CD12M/0B-070C1 Connector Female M12 90° 4 poles cable PVC 7m
Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
Electrical data
| Nominal current | Max. 4 A | |
| Wires | 4 | |
| Rated impulse voltage | 2,5 kV | |
| Nominal voltage | Max. 250 V ac/dc | |
Mechanical data
| Connections | Pin 1: brown Pin 2: white Pin 3: bluePin 4: black | |
| Tightening torque | 0,6 Nm | |
| Operating temperature | Plug : -25°C … +85°CFixed installation : -30°C … +80°CFlexible installation: -5°C … +80°C | |
| 1 | 7 | |
| Plug | M12 | |
| Outer diameter | Ø 5 mm ± 5% | |
| Head type | 90° | |
| Gasket material | PVC (CFC, cadmium, silicon, lead free)Flame retardant according to UL1581VW1/CSA FT1, self-extinguishing | |
| Wire isolation | PVC (CFC, cadmium, silicon, lead free) | |
| Bending radius | Wire for fixed installation: 5 x dWire for flexible installation: 10 x d | |
| Conductors section | 0,34 mm2 (19 x 0,15 mm2) | |
Test/Approvals
| Degree of protection | IEC IP67 | |
Electrical diagrams of the connections
Dimension (mm)
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 79 Mbytes |
|
| Download general catalog |
|
