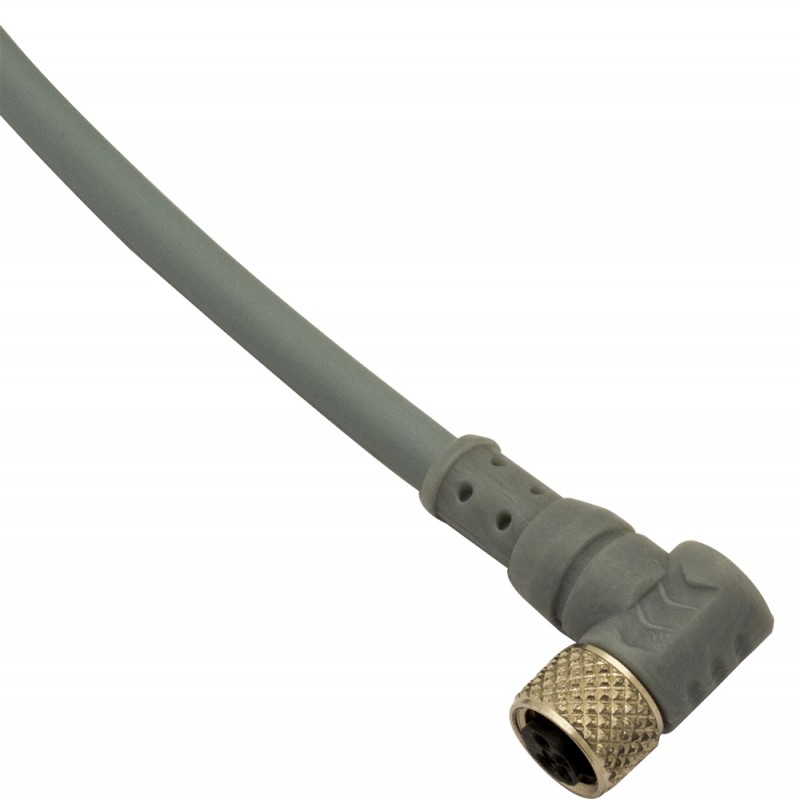

CD08/0B-020C5 MICRO DETECTORS Connector female M8 90° 4 poles cable PUR 2 m
CD08/0B-020C5
MICRO DETECTORS
Connector female M8 90° 4 poles cable PUR 2 m
CD08/0B-020C5 Connector female M8 90° 4 poles cable PUR 2 m
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
Electrical data
| Nominal current | 4 A | |
| Led | no | |
| Wires | 4 | |
| Rated impulse voltage | 1,5 kV | |
| Nominal voltage | Max. 60 V ac/dc | |
Mechanical data
| Tightening torque | 0,4 Nm | |
| Operating temperature | -5°C...+80°C (flexible installation) -30°C...+80°C (fixed installation) | |
| 1 | 2 | |
| Plug | M8 | |
| Outer diameter | Ø 4,7 mm ± 0,2mm | |
| Head type | 90° | |
| Gasket material | PUR | |
| Wire isolation | PVC | |
| Conductors section | 0,25 mm2(32 x 0,10 mm2) | |
Test/Approvals
| Degree of protection | IEC IP67 | |
Electrical diagrams of the connections
Dimension (mm)
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes |
|
| Download general catalog |
|
