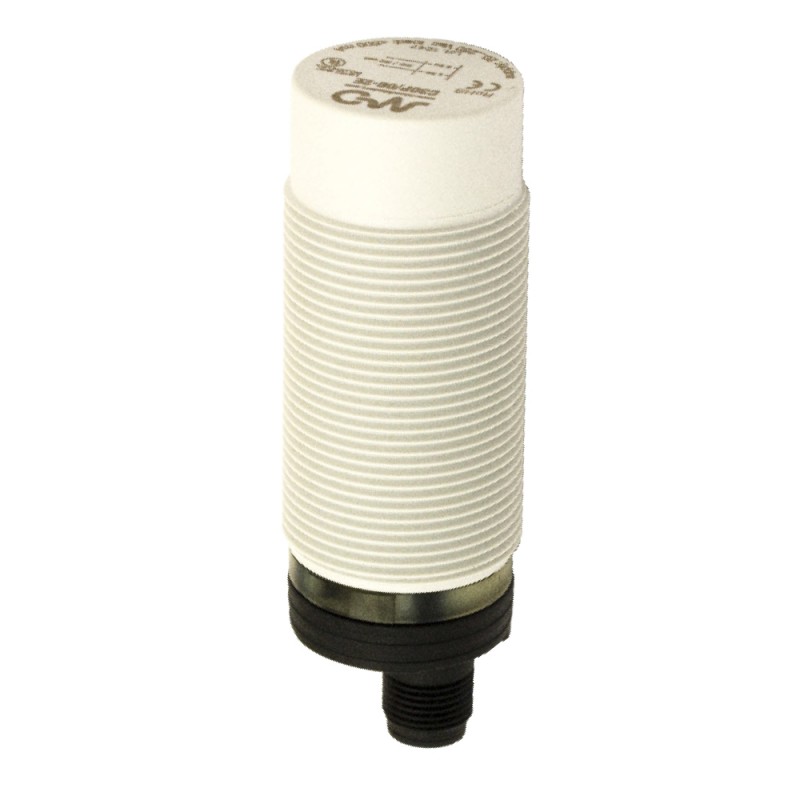

C30P/BP-2E MICRO DETECTORS Capacitive sensor M30 Plastic Unshielded DC 25mm PNP NO+NC plug M12
C30P/BP-2E
MICRO DETECTORS
Capacitive sensor M30 Plastic Unshielded DC 25mm PNP NO+NC plug M12
C30P/BP-2E Capacitive sensor M30 Plastic Unshielded DC 25mm PNP NO+NC conn. M12
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 4…25mm | |
| Thermal drift of Sr | < 20% | |
| Repeat Accuracy | 5% | |
| Sensitivity adjustment | Yes | |
| Hysteresis | ≤ 20% | |
Outputs
| Output type | PNP | |
| Output Function | NO + NC | |
| Switching frequency | 30Hz | |
Electrical data
| Operating Voltage | 10 - 40Vdc | |
| No-Load supply current | ≤12mA | |
| Load current | ≤ 200mA | |
| Leakage current | ≤ 100µA | |
| Output voltage drop | 2,5Vmax @ IL=200mA | |
| Max ripple content | ≤10% | |
| LED indicators | Yellow LED (object detected) | |
| Time delay before availability | ≤200ms | |
| Short-circuit protection | Yes, autoreset | |
| Reverse Polarity Protection | Yes | |
| Impulsive Overvoltage Protection | Yes | |
Mechanical data
| Dimensions | M30 / L = 91mm | |
| Mounting | Unshielded | |
| Weight | 100g | |
| Housing Material | polyester | |
| Connections | M12 plug | |
| Active Head Material | polyester | |
| Tightening torque | 50Nm | |
| Operating temperature | -25°C…+80°C (without freeze) | |
| Storage temperature | -40°C…+85°C | |
Test/Approvals
| Approvals | CEcULus | |
| EMC compatibility | IEC 60947-5-2 | |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 | |
| Degree of protection | IP 67 (EN60529) NEMA 1,3,4,13 | |
Accessories
| Supplied Accessories | screw driver, 2 x M30 nuts | |
Electrical diagrams of the connections
Connector
Dimension (mm)
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes |
|
| Download general catalog |
|
