MICRO DETECTORSEncodersC30P/BP-1E MICRO DETECTORS Capacitive sensor M30 Plastic Shielded DC 16mm PNP NO+NC plug M12

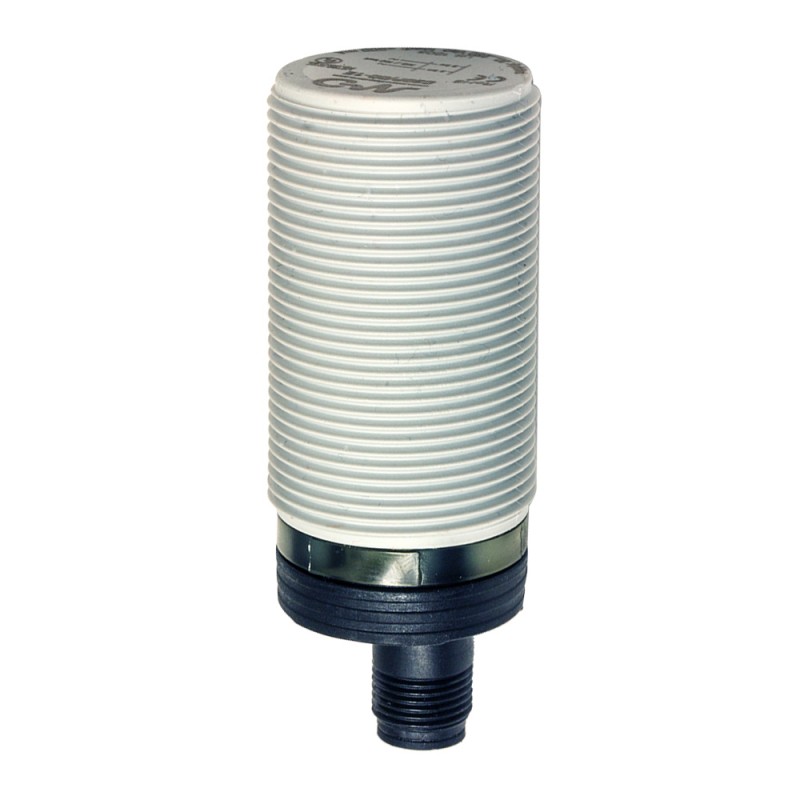

MICRO DETECTORS C30P/BP-1E C30P/BP-1E - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

C30P/BP-1E MICRO DETECTORS Capacitive sensor M30 Plastic Shielded DC 16mm PNP NO+NC plug M12

Reference: C30P/BP-1E

Manufacturer: MICRO DETECTORS

Description:

Capacitive sensor M30 Plastic Shielded DC 16mm PNP NO+NC plug M12
C30P/BP-1E Capacitive sensor M30 Plastic Shielded DC 16mm PNP NO+NC conn. M12

Categories:

  • MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 106,19 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-6 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Technical features

Nominal sensing distance2…16mm
Thermal drift of Sr< 20%
Repeat Accuracy5%
Sensitivity adjustmentYes
Hysteresis≤ 20%

Outputs

Output typePNP
Output FunctionNO + NC
Switching frequency30Hz

Electrical data

Operating Voltage10 - 40Vdc
No-Load supply current≤12mA
Load current≤ 200mA
Leakage current≤ 100µA
Output voltage drop2,5Vmax @ IL=200mA
Max ripple content≤10%
LED indicatorsYellow LED (object detected)
Time delay before availability≤200ms
Short-circuit protectionYes, autoreset
Reverse Polarity ProtectionYes
Impulsive Overvoltage ProtectionYes

Mechanical data

DimensionsM30 / L = 79mm
MountingShielded
Weight100g
Housing Materialpolyester
ConnectionsM12 plug
Active Head Materialpolyester
Tightening torque50Nm
Operating temperature-25°C…+80°C (without freeze)
Storage temperature-40°C…+85°C

Test/Approvals

ApprovalsCEcULus
EMC compatibilityIEC 60947-5-2
Shocks and vibrationsVibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protectionIP 67 (EN60529) NEMA 1,3,4,13

Accessories

Supplied Accessoriesscrew driver, 2 x M30 nuts

Electrical diagrams of the connections


Connector


Dimension (mm)
