C30M/BP-2A
MICRO DETECTORS
1

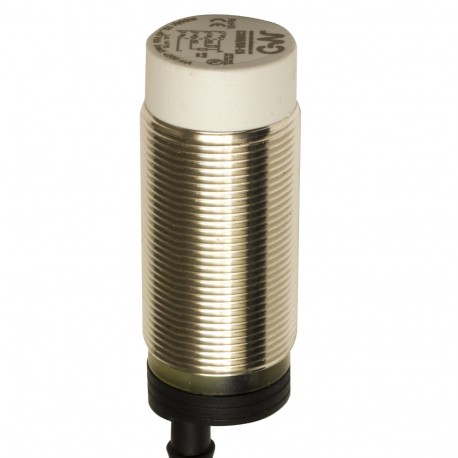

Capacitive sensor M30 Inox Unshielded DC 25mm PNP NO+NC cable 2m axial
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Nominal sensing distance | 4…25mm | |
Thermal drift of Sr | < 20% | |
Repeat Accuracy | 5% | |
Sensitivity adjustment | Yes | |
Hysteresis | ≤ 20% |
Output type | PNP | |
Output Function | NO + NC | |
Switching frequency | 30Hz |
Operating Voltage | 10 - 40Vdc | |
No-Load supply current | ≤12mA | |
Load current | ≤ 200mA | |
Leakage current | ≤ 100µA | |
Output voltage drop | 2,5Vmax @ IL=200mA | |
Max ripple content | ≤10% | |
LED indicators | Yellow LED (object detected) | |
Time delay before availability | ≤200ms | |
Short-circuit protection | Yes, autoreset | |
Reverse Polarity Protection | Yes | |
Impulsive Overvoltage Protection | Yes |
Dimensions | M30 / L = 91mm | |
Mounting | Unshielded | |
Weight | 230g | |
Housing Material | stainless steel | |
Connections | 2m PVC cable | |
Active Head Material | polyester | |
Tightening torque | 50Nm | |
Operating temperature | -25°C…+80°C (without freeze) | |
Storage temperature | -40°C…+85°C |
Approvals | CEcULus | |
EMC compatibility | IEC 60947-5-2 | |
Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 | |
Degree of protection | IP 67 (EN60529) NEMA 1,3,4,13 |
Supplied Accessories | screw driver, 2 x M30 nuts |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes | |
Download general catalog |
