MICRO DETECTORSEncodersC18P/C0-1E MICRO DETECTORS Capacitive sensor M18 Plastic Shielded AC 8mm NC plug M12

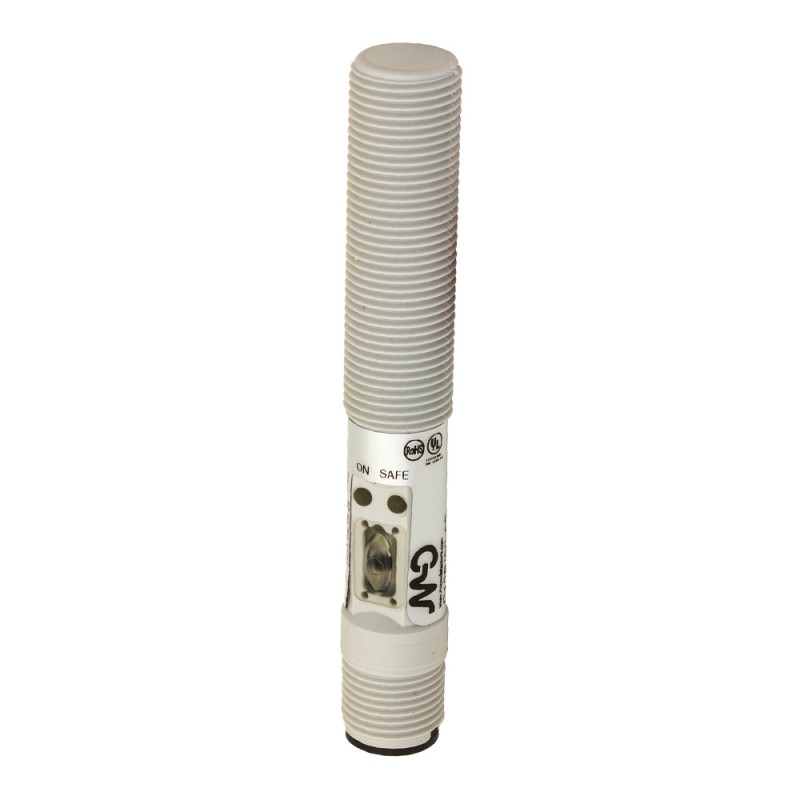

MICRO DETECTORS C18P/C0-1E C18P/C0-1E - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

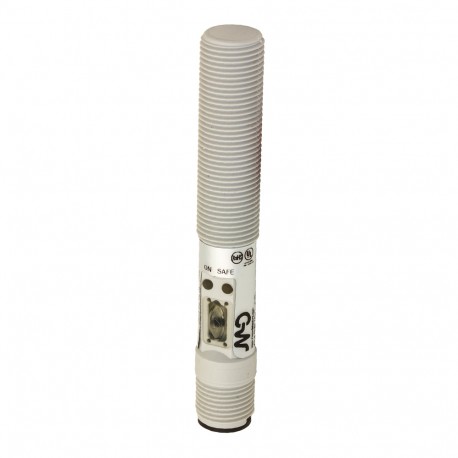

C18P/C0-1E MICRO DETECTORS Capacitive sensor M18 Plastic Shielded AC 8mm NC plug M12

Reference: C18P/C0-1E

Manufacturer: MICRO DETECTORS

Description:

Capacitive sensor M18 Plastic Shielded AC 8mm NC plug M12
C18P/C0-1E Capacitive sensor M18 Plastic Shielded AC 8mm NC conn. M12

Categories:

  • MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 108,25 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 6-8 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical features

Nominal sensing distance3…8mm
Thermal drift of Sr< 20%
Repeat Accuracy5%
Sensitivity adjustmentYes
Hysteresis≤ 20%

Outputs

Output typeSCR
Output FunctionNC
Switching frequency10Hz

Electrical data

Operating Voltage20-250Vac
No-Load supply current≤12mA
Load current≤ 500mA; max 2,5A 20ms
Leakage current≤ 100μA
Output voltage drop≤ 10VAC @ IL ≥20mA
Max ripple content≤10%
LED indicatorsYellow LED (object detected)
Time delay before availability≤ 200ms
Short-circuit protectionpolarity reversal, overvoltage
Reverse Polarity ProtectionYes
Impulsive Overvoltage ProtectionYes

Mechanical data

DimensionsM18 x 1 / L = 83mm
MountingBündig
Weight65g
Housing Materialthermoplastic polyester
ConnectionsM12 plug
Active Head Materialthermoplastic polyester
Tightening torque2,6Nm
Operating temperature-35°C…+85°C (ohne Kondensation)
Storage temperature-40°C…+85°C

Test/Approvals

ApprovalsCEcULus
EMC compatibilityIEC 60947-5-2
Shocks and vibrationsVibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protectionIP 67 - IP68 (60min) - IP69K - NEMA 1, 2, 4, 4x, 5, 6, 6p, 12

Accessories

Supplied Accessoriesscrew driver, 2 x M18 nuts

Electrical diagrams of the connections


Connector


Dimension (mm)



DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE MICRODETECTORS EN
79 Mbytes
