MICRO DETECTORSEncodersBX80S/10-0H9K MICRO DETECTORS Area sensor Emitter, adjustment 2m 10ms plug M12

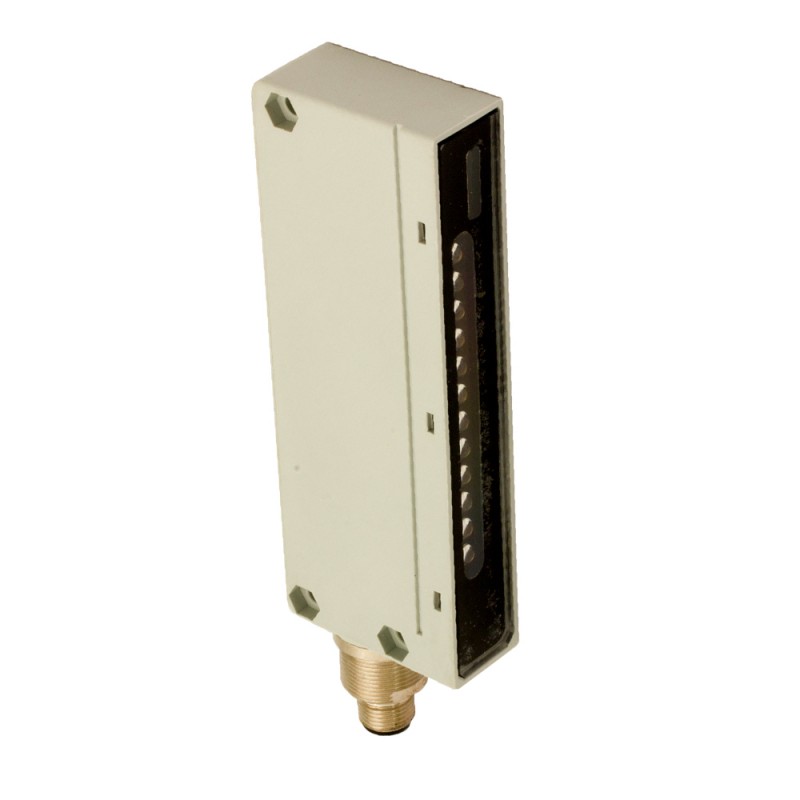

MICRO DETECTORS BX80S/10-0H9K BX80S/10-0H9K - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

BX80S/10-0H9K MICRO DETECTORS Area sensor Emitter, adjustment 2m 10ms plug M12

Reference: BX80S/10-0H9K

Manufacturer: MICRO DETECTORS

Description:

Area sensor Emitter, adjustment 2m 10ms plug M12
BX80S/10-0H9K Area sensor Emitt. adj. 2m 10ms conn. M12 - IP69K

Categories:

  • MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 318,67 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-6 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Technical features

Nominal sensing distancedepending on the receiver
Thermal drift of Sr≤10%
Beams space6mm
controlled height70mm
number of rays12
Sensitivity adjustmentYes

Application

Function PrincipleEmitter

Electrical data

Operating Voltage12-24Vcc
No-Load supply current100mA
Load current≤100mA
Leakage current10µA
Output voltage drop≤1.2V IL =100 mA
Max ripple content≤ 10%
LED indicatorsgreen (supply), red (alarm sync.), yellow (area state)
Time delay before availability500ms
Short-circuit protectionYes (auto reset)
Reverse Polarity ProtectionYes
EmissionInfrared (880 nm)
Interference to external light1.500 lux max. (incandescent lamp), 4.500 lux max. (sunlight)
Impulsive Overvoltage ProtectionYes

Mechanical data

Dimensions44mm x 120mm x 20mm
Weight260 … 300g
Housing MaterialPBT
ConnectionsM12 male connector
Active Head MaterialPC
Tightening torque25Nm
Operating temperature-25°C…+50°C (without freeze)
Storage temperature-40°C…+80°C

Test/Approvals

ApprovalsCE
EMC compatibilityIEC 60947-5-2
Shocks and vibrationsIEC EN 60947-5-2
Degree of protectionIP69K

Electrical diagrams of the connections


Connector


Dimension (mm)
