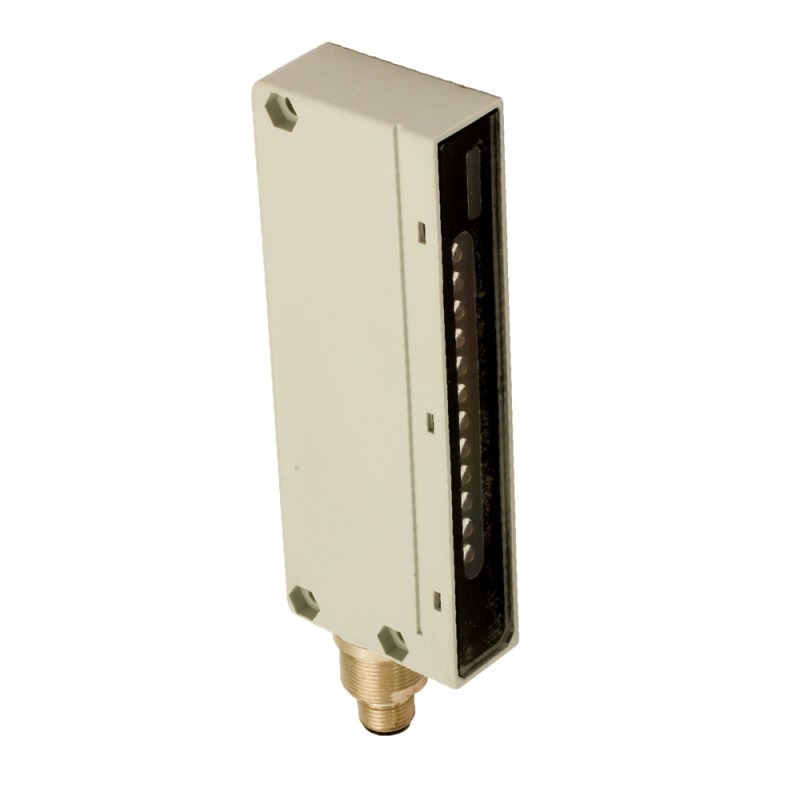

BX80B/2N-0H MICRO DETECTORS Area sensor Receiver crossed beam 1,5m 10ms NPN NO/NC plug
BX80B/2N-0H
MICRO DETECTORS
Area sensor Receiver crossed beam 1,5m 10ms NPN NO/NC plug
Sensors
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
More info
▲Technical features
| Nominal sensing distance | 300mm … 1.5m | |
| Thermal drift of Sr | ≤10% | |
| Beams space | 6mm | |
| controlled height | 70mm | |
| minimum detectable object | Ø5mm | |
| number of rays | 12 | |
Application
| Function Principle | Receiver | |
Outputs
| Output type | NPN | |
| Output Function | NO/NC selectable | |
Electrical data
| Operating Voltage | 12-24Vcc | |
| No-Load supply current | 50mA | |
| Load current | ≤100mA | |
| Leakage current | 10µA | |
| Output voltage drop | ≤1.2V IL =100 mA | |
| Max ripple content | ≤ 10% | |
| LED indicators | green (supply), red (alignment), yellow (output state) | |
| Time delay before availability | 500ms | |
| Short-circuit protection | Yes (auto reset) | |
| Reverse Polarity Protection | Yes | |
| Emission | Infrared (880 nm) | |
| Interference to external light | 1.500 lux max. (incandescent lamp), 4.500 lux max. (sunlight) | |
| Impulsive Overvoltage Protection | Yes | |
Mechanical data
| Dimensions | 44mm x 120mm x 20mm | |
| Weight | 260 … 300g | |
| Housing Material | PBT | |
| Connections | M12 male connector | |
| Active Head Material | PC | |
| Tightening torque | 25Nm | |
| Operating temperature | -25°C…+50°C (without freeze) | |
| Storage temperature | -40°C…+80°C | |
Test/Approvals
| Approvals | CE | |
| EMC compatibility | IEC 60947-5-2 | |
| Shocks and vibrations | IEC EN 60947-5-2 | |
| Degree of protection | IP67 | |
Electrical diagrams of the connections
Connector
Dimension (mm)
