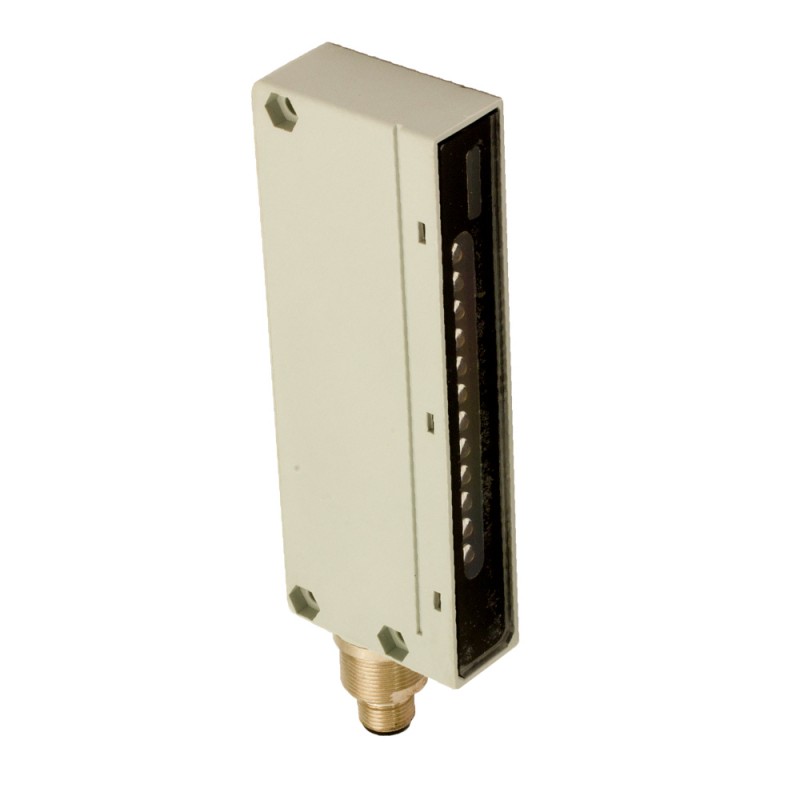

BX80A/5P-2H MICRO DETECTORS Area sensor Receiver 0,25m 2ms PNP NO/NC plug glass optic View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

BX80A/5P-2H MICRO DETECTORS Area sensor Receiver 0,25m 2ms PNP NO/NC plug glass optic

BX80A/5P-2H

MICRO DETECTORS

Available Ship on today

Area sensor Receiver 0,25m 2ms PNP NO/NC plug glass optic

More details


* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

Total price: $308.46
Unit price: $308.46

Quantity Price
1+$308.46
2+$297.36
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info



Technical features

Nominal sensing distance 90 … 250mm
Thermal drift of Sr ≤10%
Beams space 6mm
controlled height 70mm
minimum detectable object ø 2mm
number of rays 12

Application

Function Principle Receiver

Outputs

Output type PNP
Output Function NO/NC selectable

Electrical data

Operating Voltage 12-24Vcc
No-Load supply current 50mA
Load current ≤100mA
Leakage current 10µA
Output voltage drop ≤1.2V IL =100 mA
Max ripple content ≤ 10%
LED indicators green (supply), red (alignment), yellow (output state)
Time delay before availability 500ms
Short-circuit protection Yes (auto reset)
Reverse Polarity Protection Yes
Emission Infrared (880 nm)
Interference to external light 1.500 lux max. (incandescent lamp), 4.500 lux max. (sunlight)
Impulsive Overvoltage Protection Yes

Mechanical data

Dimensions 44mm x 120mm x 20mm
Weight 260 … 300g
Housing Material PBT
Connections M12 male connector
Active Head Material PC
Tightening torque 25Nm
Operating temperature -25°C…+50°C (without freeze)
Storage temperature -40°C…+80°C

Test/Approvals

Approvals CE
EMC compatibility IEC 60947-5-2
Shocks and vibrations IEC EN 60947-5-2
Degree of protection IP67

Electrical diagrams of the connections


Connector


Dimension (mm)



Datasheet - PDF
