MICRO DETECTORSEncodersBX80A/4P-0H MICRO DETECTORS Area sensor Receiver 0,6m 2ms PNP NO/NC plug

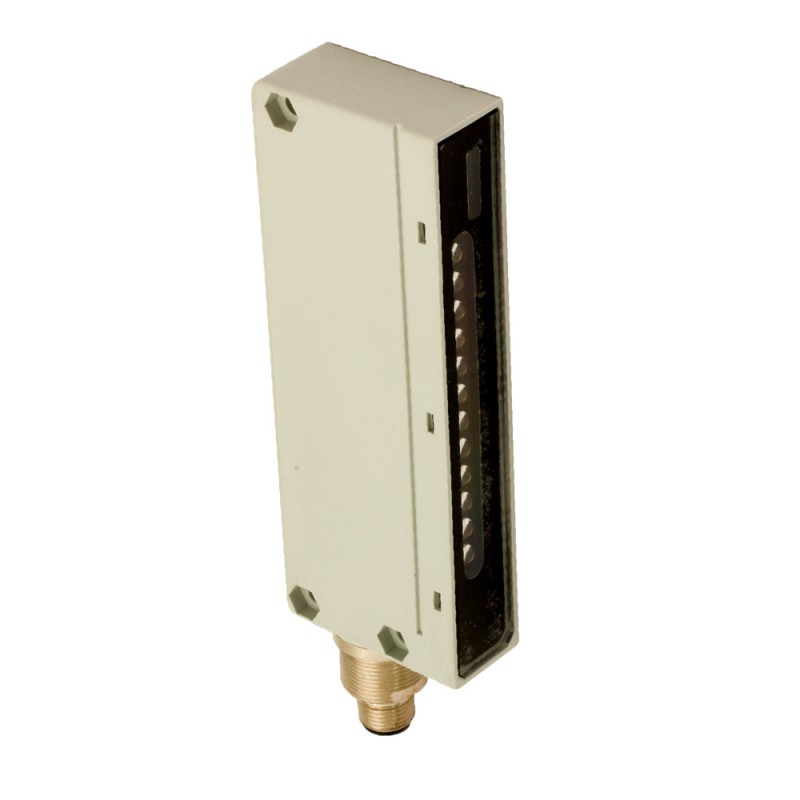

MICRO DETECTORS BX80A/4P-0H BX80A/4P-0H - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

BX80A/4P-0H MICRO DETECTORS Area sensor Receiver 0,6m 2ms PNP NO/NC plug

Reference: BX80A/4P-0H

Manufacturer: MICRO DETECTORS

Description:

Area sensor Receiver 0,6m 2ms PNP NO/NC plug
BX80A/4P-0H Area sensor Receiver 0,6m 2ms PNP NO/NC conn.

Categories:

  • MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 292,83 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-6 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical features

Nominal sensing distance30mm … 0.6m
Thermal drift of Sr≤10%
Beams space6mm
controlled height70mm
minimum detectable objectØ6mm
number of rays12

Application

Function PrincipleReceiver

Outputs

Output typePNP
Output FunctionNO/NC selectable

Electrical data

Operating Voltage12-24Vcc
No-Load supply current50mA
Load current≤100mA
Leakage current10µA
Output voltage drop≤1.2V IL =100 mA
Max ripple content≤ 10%
LED indicatorsgreen (supply), red (alignment), yellow (output state)
Time delay before availability500ms
Short-circuit protectionYes (auto reset)
Reverse Polarity ProtectionYes
EmissionInfrared (880 nm)
Interference to external light1.500 lux max. (incandescent lamp), 4.500 lux max. (sunlight)
Impulsive Overvoltage ProtectionYes

Mechanical data

Dimensions44mm x 120mm x 20mm
Weight260 … 300g
Housing MaterialPBT
ConnectionsM12 male connector
Active Head MaterialPC
Tightening torque25Nm
Operating temperature-25°C…+50°C (without freeze)
Storage temperature-40°C…+80°C

Test/Approvals

ApprovalsCE
EMC compatibilityIEC 60947-5-2
Shocks and vibrationsIEC EN 60947-5-2
Degree of protectionIP67

Electrical diagrams of the connections


Connector


Dimension (mm)



DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE MICRODETECTORS EN
79 Mbytes
