BX80A/2N-0H
MICRO DETECTORS
1

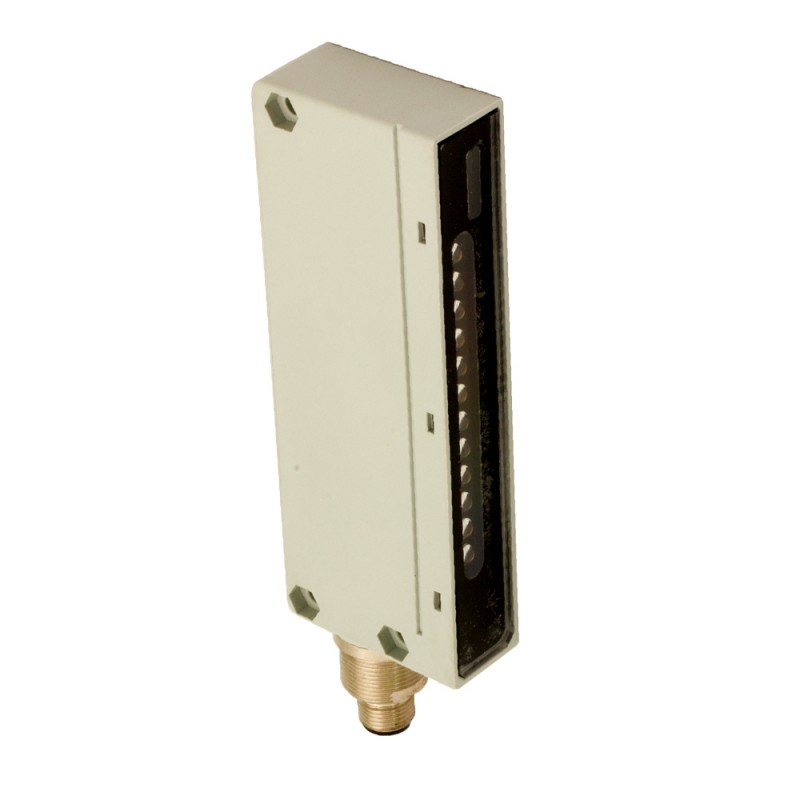

Area sensor Receiver 1,5m 10ms NPN NO/NC plug
BX80A/2N-0H Area sensor Receiver 1,5m 10ms NPN NO/NC conn.
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Nominal sensing distance | 0 … 1.5m | |
Thermal drift of Sr | ≤10% | |
Beams space | 6mm | |
controlled height | 70mm | |
minimum detectable object | Ø6mm | |
number of rays | 12 |
Function Principle | Receiver |
Output type | NPN | |
Output Function | NO/NC selectable |
Operating Voltage | 12-24Vcc | |
No-Load supply current | 50mA | |
Load current | ≤100mA | |
Leakage current | 10µA | |
Output voltage drop | ≤1.2V IL =100 mA | |
Max ripple content | ≤ 10% | |
LED indicators | green (supply), red (alignment), yellow (output state) | |
Time delay before availability | 500ms | |
Short-circuit protection | Yes (auto reset) | |
Reverse Polarity Protection | Yes | |
Emission | Infrared (880 nm) | |
Interference to external light | 1.500 lux max. (incandescent lamp), 4.500 lux max. (sunlight) | |
Impulsive Overvoltage Protection | Yes |
Dimensions | 44mm x 120mm x 20mm | |
Weight | 260 … 300g | |
Housing Material | PBT | |
Connections | M12 male connector | |
Active Head Material | PC | |
Tightening torque | 25Nm | |
Operating temperature | -25°C…+50°C (without freeze) | |
Storage temperature | -40°C…+80°C |
Approvals | CE | |
EMC compatibility | IEC 60947-5-2 | |
Shocks and vibrations | IEC EN 60947-5-2 | |
Degree of protection | IP67 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes | |
Download general catalog |
