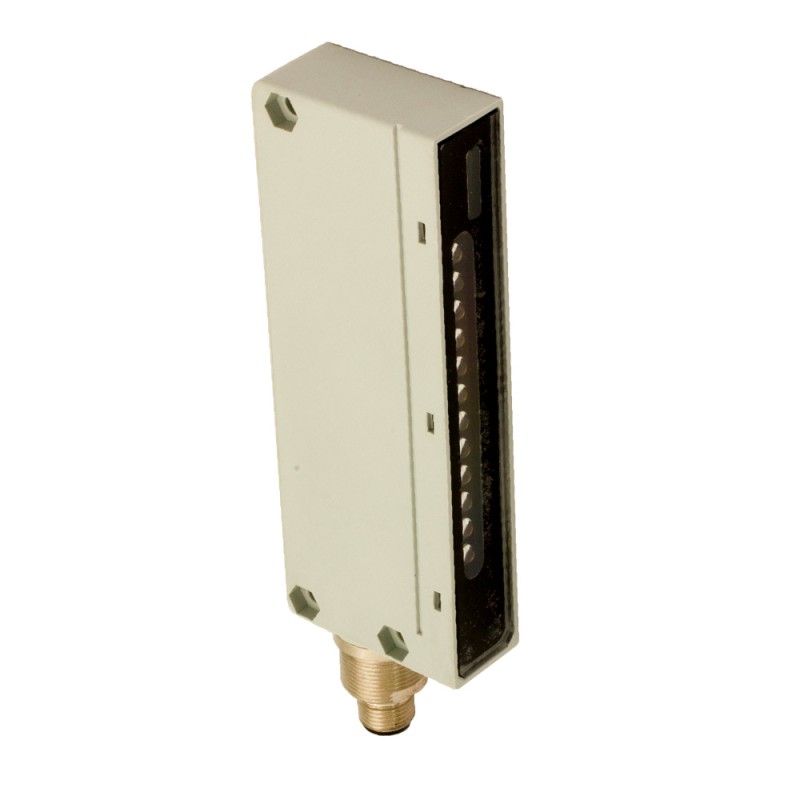

BX80A/1P-0H9K MICRO DETECTORS Area sensor Receiver 2m 10ms plug M12
BX80A/1P-0H9K
MICRO DETECTORS
Area sensor Receiver 2m 10ms plug M12
BX80A/1P-0H9K Area sensor Receiver 2m 10ms conn. M12 - IP69K
Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Often bought together
▲Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 0…2m | |
| Thermal drift of Sr | ≤10% | |
| Beams space | 6mm | |
| controlled height | 70mm | |
| minimum detectable object | Ø6mm | |
| number of rays | 12 | |
Application
| Function Principle | Receiver | |
Outputs
| Output type | PNP | |
| Output Function | NO/NC selectable | |
Electrical data
| Operating Voltage | 12-24Vcc | |
| No-Load supply current | 50mA | |
| Load current | ≤100mA | |
| Leakage current | 10µA | |
| Output voltage drop | ≤1.2V IL =100 mA | |
| Max ripple content | ≤ 10% | |
| LED indicators | green (supply), red (alignment), yellow (output state) | |
| Time delay before availability | 500ms | |
| Short-circuit protection | Yes (auto reset) | |
| Reverse Polarity Protection | Yes | |
| Emission | Infrared (880 nm) | |
| Interference to external light | 1.500 lux max. (incandescent lamp), 4.500 lux max. (sunlight) | |
| Impulsive Overvoltage Protection | Yes | |
Mechanical data
| Dimensions | 44mm x 120mm x 20mm | |
| Weight | 260 … 300g | |
| Housing Material | PBT | |
| Connections | M12 male connector | |
| Active Head Material | PC | |
| Tightening torque | 25Nm | |
| Operating temperature | -25°C…+50°C (without freeze) | |
| Storage temperature | -40°C…+80°C | |
Test/Approvals
| Approvals | CE | |
| EMC compatibility | IEC 60947-5-2 | |
| Shocks and vibrations | IEC EN 60947-5-2 | |
| Degree of protection | IP69K | |
Electrical diagrams of the connections
Connector
Dimension (mm)
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 79 Mbytes |
|
| Download general catalog |
|
