BX10R/CD-HB
MICRO DETECTORS
1

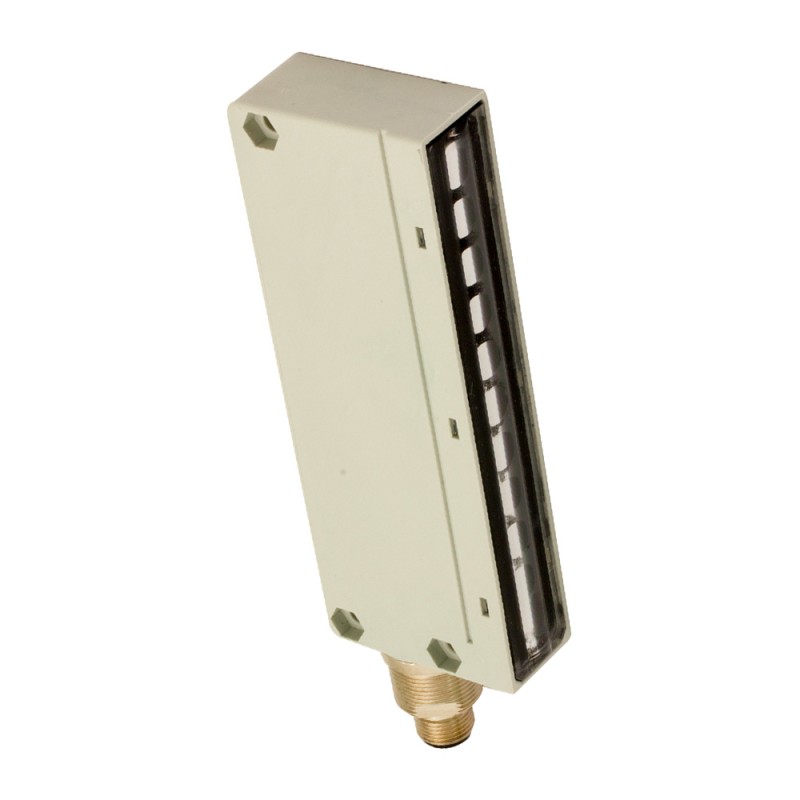

Area sensor Receiver 10 beams LO. plug M12P+N10-26VDC
BX10R/CD-HB Area sensor Receiver 10 beams LO. conn. M12P+N10-26VDC
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Nominal sensing distance | 0,3 … 2m | |
Thermal drift of Sr | ≤10% | |
Beams space | 10mm | |
controlled height | 90mm | |
number of rays | 10 | |
Sensitivity adjustment | Trimmer |
Function Principle | Receiver |
Output type | NPN+PNP | |
Output Function | NC |
Operating Voltage | 10-26Vdc | |
No-Load supply current | 50mA | |
Load current | ≤100mA | |
Leakage current | 10μA | |
Output voltage drop | ≤2V IL =100 mA | |
Max ripple content | ≤ 10% | |
LED indicators | Red, Yellow | |
Time delay before availability | CE | |
Short-circuit protection | autoreset | |
Reverse Polarity Protection | Yes | |
Emission | Infrared | |
Interference to external light | 1000lux (incandescent lamp), 1500lux (sunlight) | |
Impulsive Overvoltage Protection | Yes |
Dimensions | 45mm x 145mm x 20mm | |
Weight | 230g | |
Housing Material | PBT | |
Connections | M12 Plug | |
Tightening torque | 25Nm | |
Operating temperature | 0°C…+ 50° C (without freeze) |
Approvals | CE | |
EMC compatibility | EN 60947-5-2 | |
Degree of protection | IP67 |
Supplied Accessories | 4 nuts M18x1 - 1 adjustment key - 2 90°angled brackets |
Title: | Size: | Type: |
---|---|---|
PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes | |
Download general catalog |
