MICRO DETECTORSEncodersBX04SR/XA-AB MICRO DETECTORS Area sensor Kit 4 beams, with adjustment, CK. P+N DO cable 2m

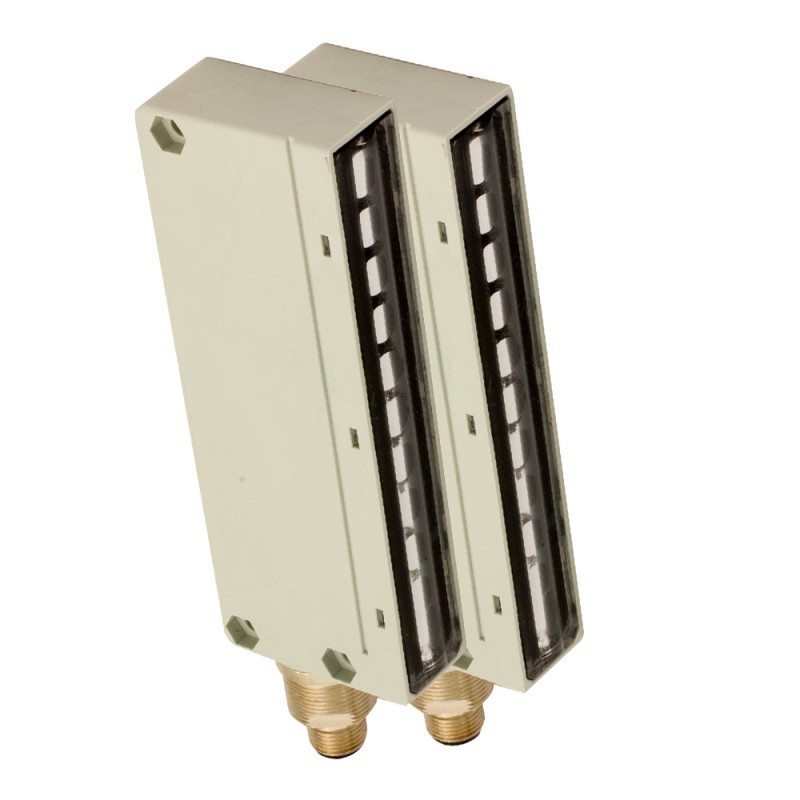

MICRO DETECTORS BX04SR/XA-AB BX04SR/XA-AB - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

BX04SR/XA-AB MICRO DETECTORS Area sensor Kit 4 beams, with adjustment, CK. P+N DO cable 2m

Reference: BX04SR/XA-AB

Manufacturer: MICRO DETECTORS

Description:

Area sensor Kit 4 beams, with adjustment, CK. P+N DO cable 2m
BX04SR/XA-AB Area sensor Kit 4 beams adj. CK. P+N DO cable 2m

Categories:

  • MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 291,98 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 6-8 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical details

Discovery properties

Nominal range0,3 ... 2 m
Thermal drift≤10%
Distance between beams30mm
Protected height90mm
Number of beamsFour
Sensitivity adjustmentPotentiometer

Applications

Principle of operationTransmitter with control

Electrical data

Supply voltage10-26Vcc
Absorption of current in the vacuum50mA
Load current≤100mA
Leakage current10µA
Voltage drop to the output≤2V IL =100 mA
Maximum residual ripple≤ 10%
LED indicatorsGreen
Delay to the availabilityEC
Protection short circuitautomatic restart
Protection polarity reversalYes
EmissionInfrared
Immunity to ambient light1000lux (incandescent lamp), 1500lux (sunlight)
Protection against impulse overvoltageYes

Mechanical data

Dimensions45mm x 145mm x 20mm
Weight300g
body materialPBT
ConnectionsOutput cable
Tightening torque25Nm
Operating temperature0°C...+ 50° C (non-condensing)

Test/Certifications

CertificationsEC
Electromagnetic compatibilityAccording to en 60947-5-2
Degree of protectionIP67

Accessories

Accessories included4 nut M18x1 - 1 adjustment key - 2 brackets 90°

Electrical wiring diagram of the connections


Dimension (mm)
