MICRO DETECTORSEncodersBX04SR/0A-AB MICRO DETECTORS Area sensor Kit 4 beams, with adjustment, P+N DO cable 2m

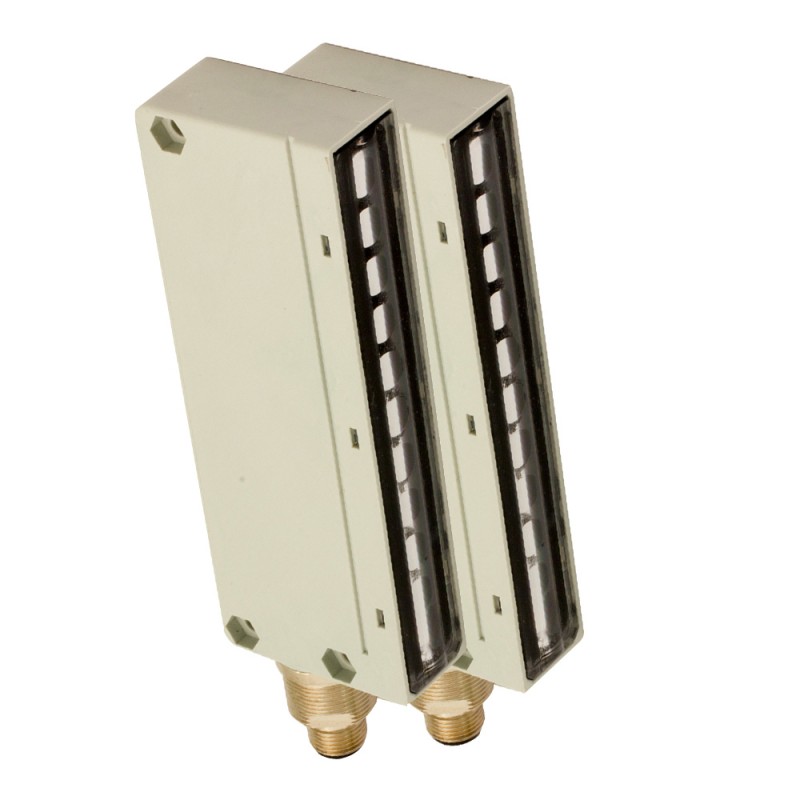

MICRO DETECTORS BX04SR/0A-AB BX04SR/0A-AB - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

BX04SR/0A-AB MICRO DETECTORS Area sensor Kit 4 beams, with adjustment, P+N DO cable 2m

Reference: BX04SR/0A-AB

Manufacturer: MICRO DETECTORS

Description:

Area sensor Kit 4 beams, with adjustment, P+N DO cable 2m
BX04SR/0A-AB Area sensor Kit 4 beams adj. P+N DO cable 2m

Categories:

  • MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 279,25 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 6-8 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical features

Nominal sensing distance0,3 … 2m
Thermal drift of Sr≤10%
Beams space30mm
controlled height90mm
number of rays4
Sensitivity adjustmentTrimmer

Application

Function PrincipleEmitter

Electrical data

Operating Voltage10-26Vdc
No-Load supply current50mA
Load current≤100mA
Leakage current10μA
Output voltage drop≤2V IL =100 mA
Max ripple content≤ 10%
LED indicatorsGreen
Time delay before availabilityCE
Short-circuit protectionautoreset
Reverse Polarity ProtectionYes
EmissionInfrared
Interference to external light1000lux (incandescent lamp), 1500lux (sunlight)
Impulsive Overvoltage ProtectionYes

Mechanical data

Dimensions45mm x 145mm x 20mm
Weight300g
Housing MaterialPBT
ConnectionsCable exit
Tightening torque25Nm
Operating temperature0°C…+ 50° C (without freeze)

Test/Approvals

ApprovalsCE
EMC compatibilityEN 60947-5-2
Degree of protectionIP67

Accessories

Supplied Accessories4 nuts M18x1 - 1 adjustment key - 2 90°angled brackets

Electrical diagrams of the connections


Dimension (mm)



DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE MICRODETECTORS EN
79 Mbytes
