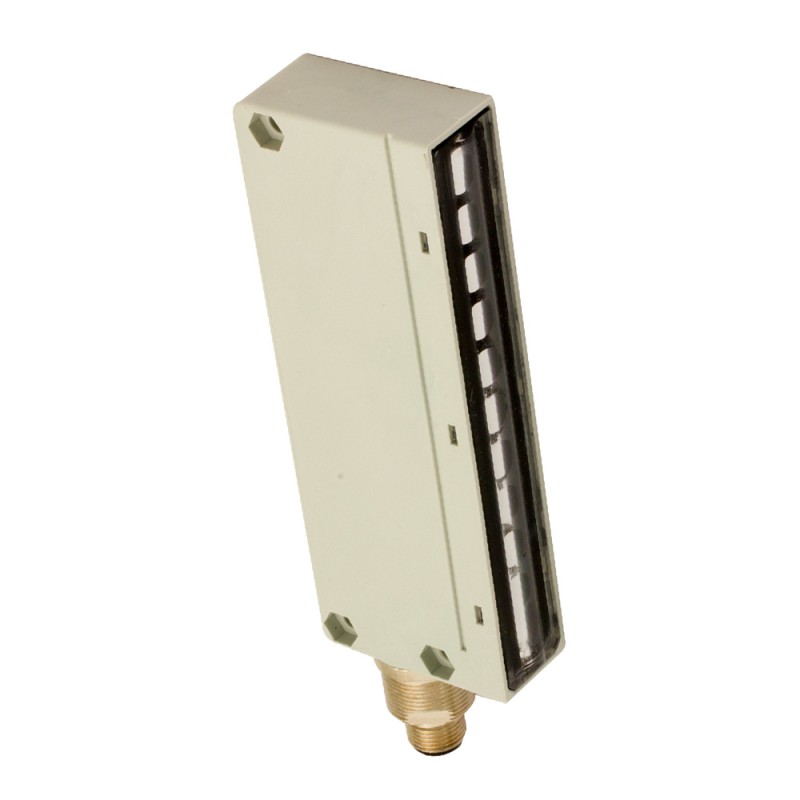

BX04R/AD-AB MICRO DETECTORS Area sensor Receiver 4 beams DO. cable 2m P+N 10-26VDC
BX04R/AD-AB
MICRO DETECTORS
Area sensor Receiver 4 beams DO. cable 2m P+N 10-26VDC
BX04R/AD-AB Area sensor Receiver 4 beams DO. cable 2m P+N 10-26VDC
Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 0,3 … 2m | |
| Thermal drift of Sr | ≤10% | |
| Beams space | 30mm | |
| controlled height | 90mm | |
| number of rays | 4 | |
| Sensitivity adjustment | Trimmer | |
Application
| Function Principle | Receiver | |
Outputs
| Output type | NPN+PNP | |
| Output Function | NO | |
Electrical data
| Operating Voltage | 10-26Vdc | |
| No-Load supply current | 50mA | |
| Load current | ≤100mA | |
| Leakage current | 10μA | |
| Output voltage drop | ≤2V IL =100 mA | |
| Max ripple content | ≤ 10% | |
| LED indicators | Red, Yellow | |
| Time delay before availability | CE | |
| Short-circuit protection | autoreset | |
| Reverse Polarity Protection | Yes | |
| Emission | Infrared | |
| Interference to external light | 1000lux (incandescent lamp), 1500lux (sunlight) | |
| Impulsive Overvoltage Protection | Yes | |
Mechanical data
| Dimensions | 45mm x 145mm x 20mm | |
| Weight | 300g | |
| Housing Material | PBT | |
| Connections | Cable exit | |
| Tightening torque | 25Nm | |
| Operating temperature | 0°C…+ 50° C (without freeze) | |
Test/Approvals
| Approvals | CE | |
| EMC compatibility | EN 60947-5-2 | |
| Degree of protection | IP67 | |
Accessories
| Supplied Accessories | 4 nuts M18x1 - 1 adjustment key - 2 90°angled brackets | |
Electrical diagrams of the connections
Dimension (mm)
Datasheet - PDF
