MICRO DETECTORSEncodersBS2/00-0E MICRO DETECTORS Photoelectric sensor diffuse 100 mm plug M12

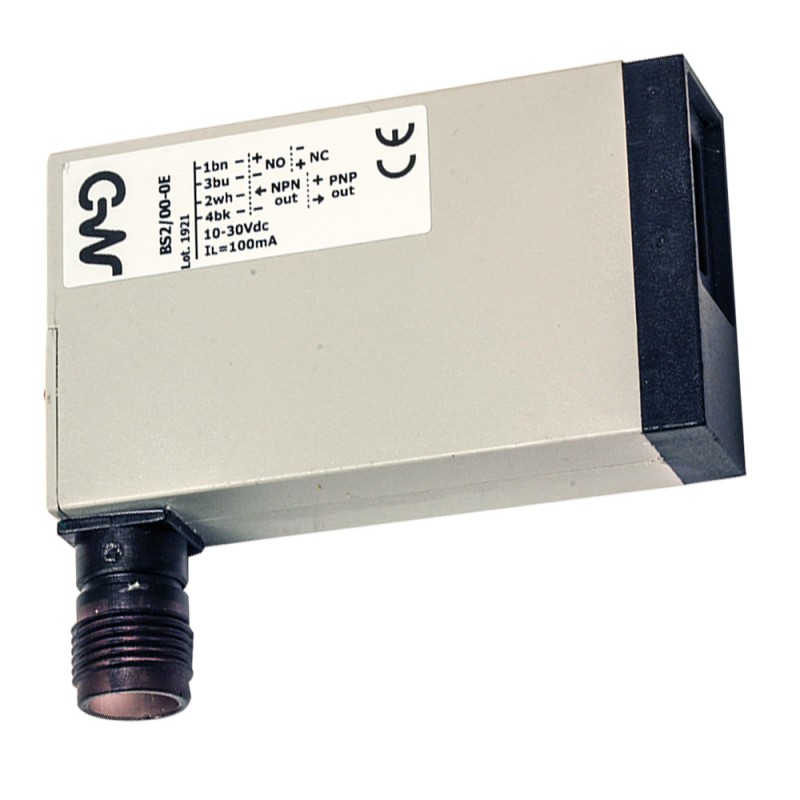

MICRO DETECTORS BS2/00-0E BS2/00-0E - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

BS2/00-0E MICRO DETECTORS Photoelectric sensor diffuse 100 mm plug M12

Reference: BS2/00-0E

Manufacturer: MICRO DETECTORS

Description:

Photoelectric sensor diffuse 100 mm plug M12
BS2/00-0E Photoelectric sensor Diffuse 100 mm conn. M12

Categories:

  • MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 134,11 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-6 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical features

Nominal sensing distance100mm
Repeat Accuracy≤ 5%
Sensitivity adjustment1 turn trimmer

Application

Function PrincipleDiffuse reflection
Optic positionAxial

Outputs

Output typeDECOUT (PNP, NPN, NO, NC selectable)
Output FunctionNO, NC selectable
Switching frequency80Hz

Electrical data

Operating Voltage10-30Vdc
No-Load supply current25mA max
Load current100mA
Leakage current≤ 10μA
Output voltage drop1,2V max
Max ripple content≤ 10%
LED indicatorsRed ( output energized)
Time delay before availability200ms
Short-circuit protectionYes
Reverse Polarity ProtectionYes
EmissionInfrared (880nm)
Interference to external light3000lux Incandescent Lamp, 10000lux

Mechanical data

Dimensions16x37x64
Weight185g
ConnectionsM12 plug 90°
Active Head MaterialPMMA
Operating temperature- 25°C…+ 70°C ( without freeze)
MaterialABS

Test/Approvals

ApprovalsCE
EMC compatibilityEN 60947-5-2
Shocks and vibrationsVibration IEC 60068-2-6 / Shock IEC 60068-2-30
Degree of protectionIP65

Accessories

Supplied AccessoriesST01 mounting brakets and screws

Electrical diagrams of the connections


Connector


Dimension (mm)



Response curves

Dimensione Spot


Disassamento Parallelo


Eccesso di Guadagno


DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE MICRODETECTORS EN
79 Mbytes
