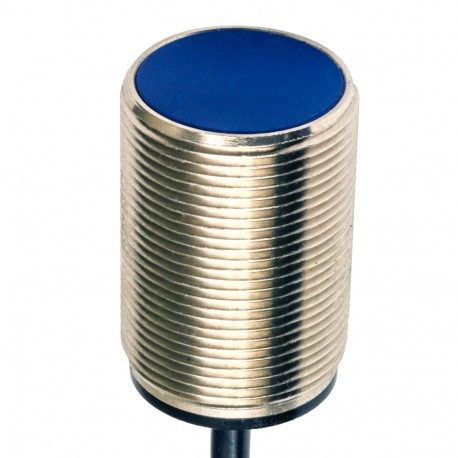

AT6/AP-3A MICRO DETECTORS Inductive sensor M30 shielded short housing NO/PNP cable 2m axial
AT6/AP-3A
MICRO DETECTORS
Inductive sensor M30 shielded short housing NO/PNP cable 2m axial
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 15mm | |
| Operanting distance | 0…12,1mm | |
| Standard target | 45x45mm FE360 | |
| Correction Factor | copper: 0,41 / aluminium: 0,47 / brass: 0,52 / stainless steel: 0,80 | |
| Thermal drift of Sr | < 10% | |
| Repeat Accuracy | 5% (UB 24V Ta=23°C ±5°C) | |
| Hysteresis | 1 … 20% | |
Outputs
| Output type | PNP | |
| Output Function | NO | |
| Switching frequency | 200Hz | |
Electrical data
| Operating Voltage | 10 - 30Vdc | |
| No-Load supply current | ≤ 20mA | |
| Load current | ≤ 400mA | |
| Leakage current | ≤ 10μA | |
| Output voltage drop | ≤ 1V @400mA | |
| Max ripple content | ≤10% | |
| LED indicators | Yellow LED output state | |
| Time delay before availability | 100ms | |
| Short-circuit protection | Yes | |
| Reverse Polarity Protection | Yes | |
| Protection against inductive loads | Yes | |
Mechanical data
| Dimensions | M30 x 1,5 / L = 44mm | |
| Mounting | Shielded | |
| Weight | 165g | |
| Housing Material | Nickel-plated brass | |
| Connections | 2m PVC Cable | |
| Active Head Material | PBT | |
| Tightening torque | 50Nm | |
| Operating temperature | -25°C…+70°C | |
Test/Approvals
| Approvals | CEcULus | |
| EMC compatibility | IEC 60947-5-2 | |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 | |
| Degree of protection | IP 67 (EN60529) | |
Accessories
| Supplied Accessories | 2 nuts M30x1,5 | |
Electrical diagrams of the connections
Dimension (mm)
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes |
|
| Download general catalog |
|
