MICRO DETECTORSEncodersAM6/AP-3A MICRO DETECTORS Inductive sensor M12 shielded NO/PNP cable 2m axial

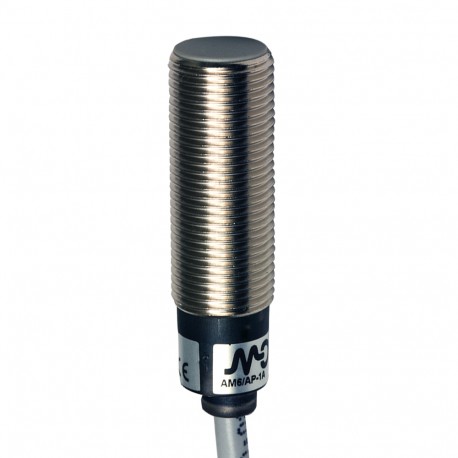

MICRO DETECTORS AM6/AP-3A AM6/AP-3A - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

AM6/AP-3A MICRO DETECTORS Inductive sensor M12 shielded NO/PNP cable 2m axial

Reference: AM6/AP-3A

Manufacturer: MICRO DETECTORS

Description:

Inductive sensor M12 shielded NO/PNP cable 2m axial
AM6/AP-3A Inductive sensor M12 shielded NO/PNP cable 2m axial

Categories:

  • MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 31,54 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-6 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical details

Discovery properties

Nominal range4mm
Operating range0...3.2 mm
Object reference12x12mm FE360
Correction Factorcopper: 0,33 / aluminum: 0,4 / brass: 0,5 / stainless steel: 1,05
Thermal drift< 10%
Repeatability5% (UB 24V Ta=23°C ±5°C)
Hysteresis1 ... 20%

Outputs

Output typePNP
Exit functionNOT
Switching frequency2kHz

Electrical data

Supply voltage10 - 30vdc
Absorption of current in the vacuum≤ 10mA
Load current≤ 200mA
Leakage current≤ 10µA
Voltage drop to the output≤ 1.8 V @200mA
Maximum residual ripple≤10%
LED indicatorsYellow LED output status
Delay to the availability50ms
Protection short circuitYes
Protection polarity reversalYes
Protection against inductive loadsYes

Mechanical data

DimensionsM12 x 1 / L = 39.8 mm
MountingFlush
Weight60g
body materialnickel-plated brass
ConnectionsCable PVC 2m - Output axial
Material of the active surfacePBT
Tightening torque10Nm
Operating temperature-25°C...+70°C

Test/Certifications

CertificationsCURS
Electromagnetic compatibilityIEC 60947-5-2
Shock and vibrationVibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protectionIP 67 (EN60529)

Accessories

Accessories included2 nuts M12x1

Electrical wiring diagram of the connections


Dimension (mm)



Mounting
