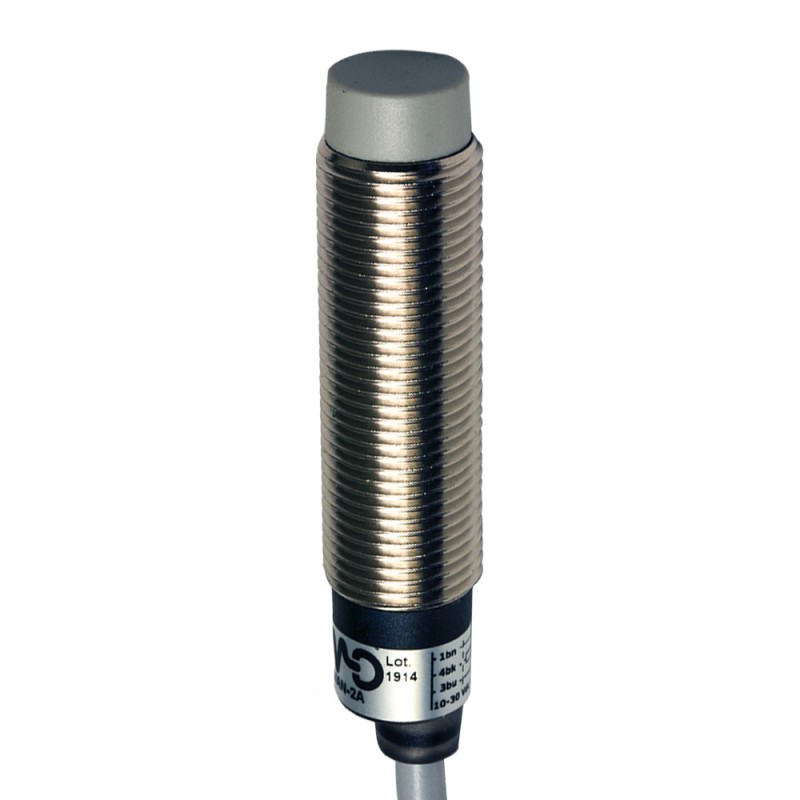

AM1/BN-2A MICRO DETECTORS Inductive sensor M12 shielded NO+NC/NPN cable 2m axial
AM1/BN-2A
MICRO DETECTORS
Inductive sensor M12 shielded NO+NC/NPN cable 2m axial
Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
Detection properties
| Nominal sensing distance | 4mm | |
| Operanting distance | 0…3,2mm | |
| Standard target | 12x12mm FE360 | |
| Correction Factor | copper: 0,41 / aluminum: 0,47 / brass: 0,56 / stainless steel: 1,15 | |
| Thermal drift of Sr | < 10% | |
| Repeat Accuracy | 5% (UB 24V Ta=23°C ±5°C) | |
| Hysteresis | 1 … 20% | |
Outputs
| Output type | NPN | |
| Output Function | NO + NC | |
| Switching frequency | 2kHz | |
Electrical data
| Operating Voltage | 10 - 30Vdc | |
| No-Load supply current | ≤ 10mA | |
| Load current | ≤ 200mA | |
| Leakage current | ≤ 10μA | |
| Output voltage drop | ≤ 1,8V @200mA | |
| Max ripple content | ≤10% | |
| LED indicators | yellow LED output state | |
| Time delay before availability | 50ms | |
| Short-circuit protection | Yes | |
| Reverse Polarity Protection | Yes | |
| Protection against inductive loads | Si | |
Mechanical data
| Dimensions | M12 x 1 / L = 49,8mm | |
| Mounting | unshielded | |
| Weight | 70g | |
| Housing Material | nickel-plated brass | |
| Connections | 2m PVC cable - Axial Exit | |
| Active Head Material | PBT | |
| Tightening torque | 10Nm | |
| Operating temperature | -25°C…+70°C | |
Test/Approvals
| Approvals | CEUR | |
| EMC compatibility | IEC 60947-5-2 | |
| Shocks and vibrations | Vibrations IEC 60068-2-6 / shocks IEC 60068-2-27 | |
| Degree of protection | IP 67 (EN60529) | |
Accessories
| Supplied Accessories | 2 M12x1 nuts | |
Dimension (mm)
Installation
Response curves
Disassamento Parallelo
Datasheet - PDF
