MICRO DETECTORSEncodersAM1/AP-1A8T MICRO DETECTORS Inductive sensor M12 shielded NO/PNP cable 3,5m axial

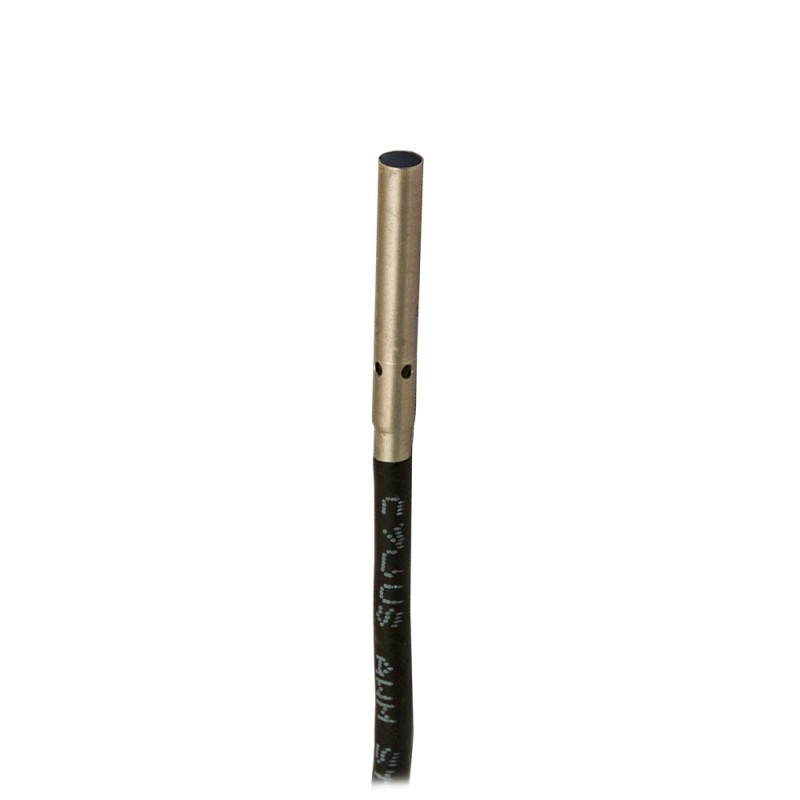

MICRO DETECTORS AM1/AP-1A8T AM1/AP-1A8T - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

AM1/AP-1A8T MICRO DETECTORS Inductive sensor M12 shielded NO/PNP cable 3,5m axial

Reference: AM1/AP-1A8T

Manufacturer: MICRO DETECTORS

Description:

Inductive sensor M12 shielded NO/PNP cable 3,5m axial
AM1/AP-1A8T Inductive sensor M12 shielded NO/PNP cable 3,5m axial

Categories:

  • MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 28,02 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-6 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Technical details

Discovery properties

Nominal range0.6 mm
Operating range0...0,48 mm
Object reference4x4mm FE360
Correction Factorcopper: 0,32 ± 10% / aluminum: 0,24 ± 10% / brass: 0,39 ± 10% / stainless Steel: 0,57 ± 10%
Thermal drift< 10%
Repeatability5% (UB 24V Ta=23°C ±5°C)
Hysteresis1 ... 20%

Outputs

Output typeNPN
Exit functionNOT
Switching frequency3kHz

Electrical data

Supply voltage10 - 30vdc
Absorption of current in the vacuum≤ 10mA
Load current≤ 100mA
Leakage current≤ 10µA
Voltage drop to the output≤ 1.5 V @100mA
Maximum residual ripple≤10%
LED indicatorsYellow LED output status
Delay to the availability≤ 50ms
Protection short circuitYes
Protection polarity reversalYes
Protection against inductive loadsYes

Mechanical data

DimensionsØ3 / L = 22mm
MountingFlush
Weight30g
body materialStainless steel AISI303
ConnectionsCable PUR 2m
Material of the active surfacePBT
Operating temperature-25°C...+70°C

Test/Certifications

CertificationsCEUL
Electromagnetic compatibilityIEC 60947-5-2
Shock and vibrationVibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protectionIP 67 (EN60529)
