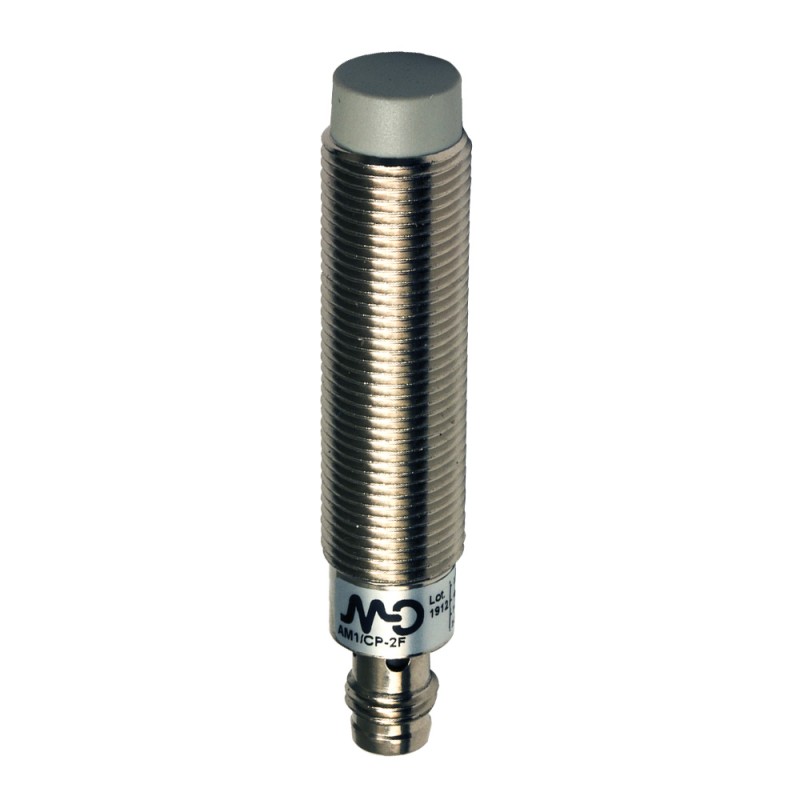

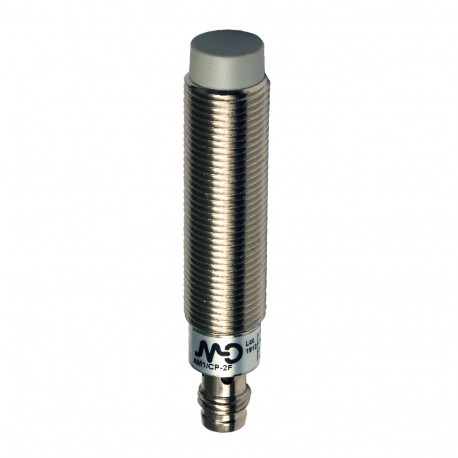

AM1/AN-2F MICRO DETECTORS Inductive sensor M12 unshielded NO/NPN plug M8
Reference: AM1/AN-2F
Manufacturer: MICRO DETECTORS
Description:
Inductive sensor M12 unshielded NO/NPN plug M8
Categories:
- MICRO DETECTORS > Sensors
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
MORE INFO
Technical details
Discovery properties
| Nominal range | 4mm | |
| Operating range | 0...3.2 mm | |
| Object reference | 12x12mm FE360 | |
| Correction Factor | copper: 0,41 / aluminum: 0.47 in / brass: 0,56 / stainless steel: 1,15 | |
| Thermal drift | < 10% | |
| Repeatability | 5% (UB 24V Ta=23°C ±5°C) | |
| Hysteresis | 1 ... 20% | |
Outputs
| Output type | NPN | |
| Exit function | NOT | |
| Switching frequency | 2kHz | |
Electrical data
| Supply voltage | 10 - 30vdc | |
| Absorption of current in the vacuum | ≤ 10mA | |
| Load current | ≤ 200mA | |
| Leakage current | ≤ 10µA | |
| Voltage drop to the output | ≤ 1.8 V @200mA | |
| Maximum residual ripple | ≤10% | |
| LED indicators | Yellow LED output status | |
| Delay to the availability | 50ms | |
| Protection short circuit | Yes | |
| Protection polarity reversal | Yes | |
| Protection against inductive loads | Yes | |
Mechanical data
| Dimensions | M12 x 1 / L = 60,4 mm | |
| Mounting | Do not flush | |
| Weight | 30g | |
| body material | nickel-plated brass | |
| Connections | M8 Connector | |
| Material of the active surface | PBT | |
| Tightening torque | 10Nm | |
| Operating temperature | -25°C...+70°C | |
Test/Certifications
| Certifications | CURS | |
| Electromagnetic compatibility | IEC 60947-5-2 | |
| Shock and vibration | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 | |
| Degree of protection | IP 67 (EN60529) | |
Accessories
| Accessories included | 2 nuts M12x1 | |
Electrical wiring diagram of the connections
Connector
Dimension (mm)
Mounting
