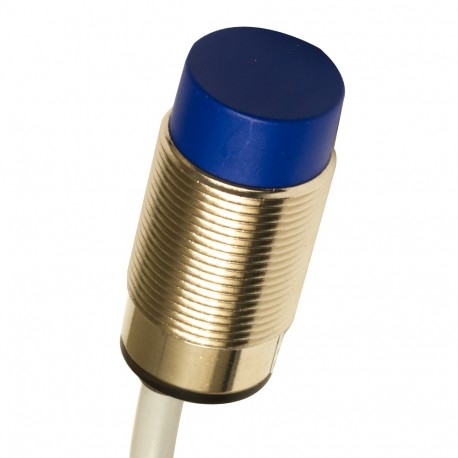

AK6/BP-4A MICRO DETECTORS Inductive sensor M18 short unshielded NO+NC/PNP cable 2m axial
AK6/BP-4A
MICRO DETECTORS
Inductive sensor M18 short unshielded NO+NC/PNP cable 2m axial
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 12mm | |
| Operanting distance | 0…9,7mm | |
| Standard target | 36x36mm FE360 | |
| Correction Factor | rame: 0,47 / alluminio: 0,42 / ottone: 0,74 / acciaio INOX: 0,36 | |
| Thermal drift of Sr | < 10% | |
| Repeat Accuracy | 5% (UB 24V Ta=23°C ±5°C) | |
| Hysteresis | 1 … 20% | |
Outputs
| Output type | PNP | |
| Output Function | NO + NC | |
| Switching frequency | 2kHz | |
Electrical data
| Operating Voltage | 10 - 30Vdc | |
| No-Load supply current | ≤ 10mA | |
| Load current | ≤ 400mA | |
| Leakage current | ≤ 10μA | |
| Output voltage drop | ≤ 1,5V @400mA | |
| Max ripple content | ≤10% | |
| LED indicators | LED giallo stato dell'uscita | |
| Time delay before availability | 50ms | |
| Short-circuit protection | Si | |
| Reverse Polarity Protection | Si | |
| Protection against inductive loads | Si | |
Mechanical data
| Dimensions | M18 x 1 / L = 39mm | |
| Mounting | Non Schermato | |
| Weight | 95g | |
| Housing Material | Ottone nichelato | |
| Connections | Cavo PVC 2m | |
| Active Head Material | PBT | |
| Tightening torque | 25Nm | |
| Operating temperature | -25°C…+70°C | |
Test/Approvals
| Approvals | CEUR | |
| EMC compatibility | IEC 60947-5-2 | |
| Shocks and vibrations | Vibrazioni IEC 60068-2-6 / Urti IEC 60068-2-27 | |
| Degree of protection | IP 67 (EN60529) | |
Accessories
| Supplied Accessories | 2 ghiere M18x1 | |
Electrical diagrams of the connections
Dimension (mm)
Installation
Response curves
Disassamento Parallelo
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes |
|
| Download general catalog |
|
