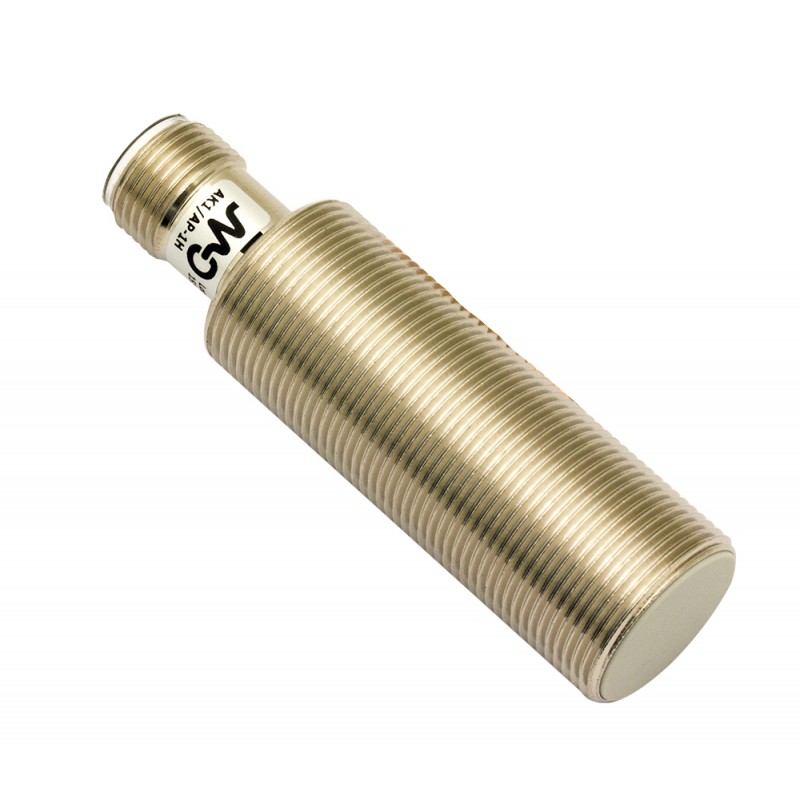

MICRO DETECTORS AK1/CN-3H AK1/CN-3H - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

AK1/CN-3H MICRO DETECTORS Inductive sensor M18 shielded NC/NPN plug M12

Reference: AK1/CN-3H

Manufacturer: MICRO DETECTORS

Description:

Inductive sensor M18 shielded NC/NPN plug M12
AK1/CN-3H Inductive sensor M18 shielded NC/NPN conn. M12

Categories:

  • MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 41,60 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-6 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical details

Discovery properties

Nominal range8mm
Operating range0...6.5 mm
Object reference24x24mm FE360
Correction Factorcopper: 0,40 / aluminum: 0,45 / brass: 0,50 / stainless steel: 0,75
Thermal drift< 10%
Repeatability5% (UB 24V Ta=23°C ±5°C)
Hysteresis1 ... 20%

Outputs

Output typeNPN
Exit functionNC
Switching frequency300Hz

Electrical data

Supply voltage10 - 30vdc
Absorption of current in the vacuum≤ 20mA
Load current≤ 400mA
Leakage current≤ 10µA
Voltage drop to the output≤ 1V @400mA
Maximum residual ripple≤10%
LED indicatorsYellow LED output status
Delay to the availability50ms
Protection short circuitYes
Protection polarity reversalYes
Protection against inductive loadsYes

Mechanical data

DimensionsM18 x 1 / L = 64mm
MountingFlush
Weight55g
body materialnickel-plated brass
ConnectionsM12 Connector
Material of the active surfacePBT
Tightening torque25Nm
Operating temperature-25°C...+70°C

Test/Certifications

CertificationsCURS
Electromagnetic compatibilityIEC 60947-5-2
Shock and vibrationVibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protectionIP 67 (EN60529)

Accessories

Accessories included2 nuts M18x1

Electrical wiring diagram of the connections
