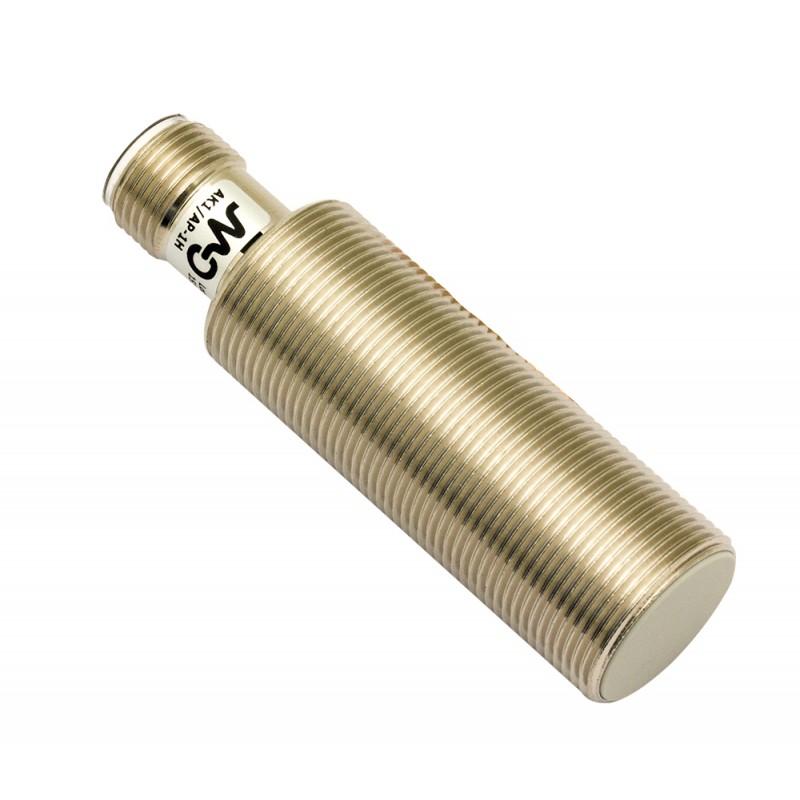

AK1/BP-3H MICRO DETECTORS Inductive sensor M18 shielded NO+NC/PNP plug M12

Reference: AK1/BP-3H

Manufacturer: MICRO DETECTORS

Description:

Inductive sensor M18 shielded NO+NC/PNP plug M12
AK1/BP-3H Inductive sensor M18 shielded NO+NC/PNP conn. M12

Categories:

  • MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 43,74 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-6 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical features

Nominal sensing distance8mm
Operanting distance0…6,5mm
Standard target24x24mm FE360
Correction Factorrame: 0,40 / alluminio: 0,45 / ottone: 0,50 / acciaio INOX: 0,75
Thermal drift of Sr< 10%
Repeat Accuracy5% (UB 24V Ta=23°C ±5°C)
Hysteresis1 … 20%

Outputs

Output typePNP
Output FunctionNO + NC
Switching frequency300Hz

Electrical data

Operating Voltage10 - 30Vdc
No-Load supply current≤ 20mA
Load current≤ 400mA
Leakage current≤ 10μA
Output voltage drop≤ 1V @400mA
Max ripple content≤10%
LED indicatorsLED giallo stato dell'uscita
Time delay before availability50ms
Short-circuit protectionSi
Reverse Polarity ProtectionSi
Protection against inductive loadsSi

Mechanical data

DimensionsM18 x 1 / L = 64mm
MountingSchermato
Weight55g
Housing MaterialOttone nichelato
ConnectionsConnettore M12
Active Head MaterialPBT
Tightening torque25Nm
Operating temperature-25°C…+70°C

Test/Approvals

ApprovalsCEUR
EMC compatibilityIEC 60947-5-2
Shocks and vibrationsVibrazioni IEC 60068-2-6 / Urti IEC 60068-2-27
Degree of protectionIP 67 (EN60529)

Accessories

Supplied Accessories2 ghiere M18x1

Electrical diagrams of the connections


Connector


Dimension (mm)



Installation



Response curves

Disassamento Parallelo


DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE MICRODETECTORS EN
79 Mbytes
