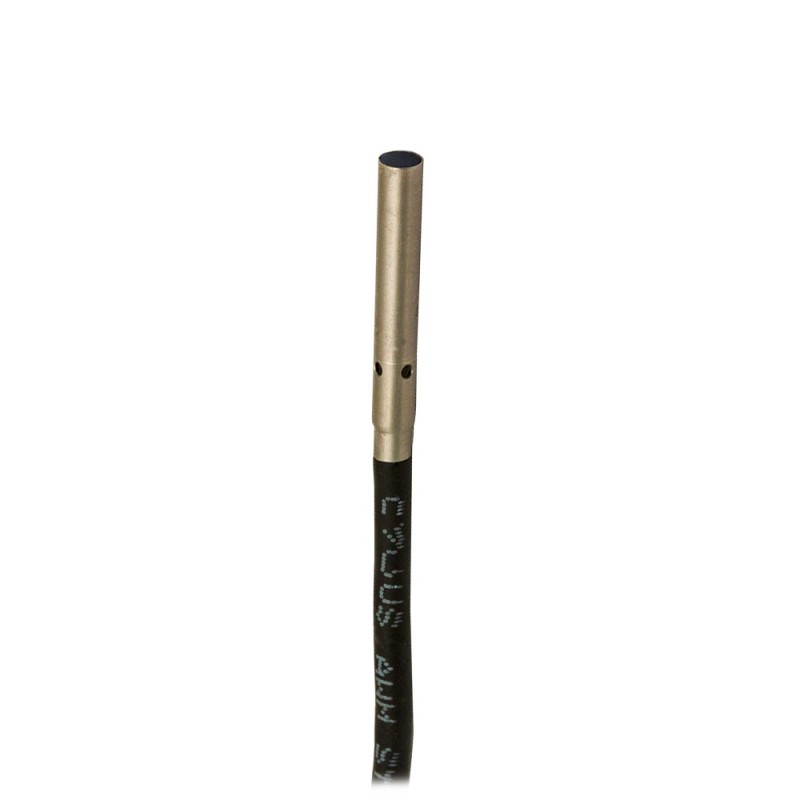

AK1/AP-3A8W MICRO DETECTORS Inductive sensor M18 shielded NO/PNP cable 8m axial
Reference: AK1/AP-3A8W
Manufacturer: MICRO DETECTORS
Description:
Inductive sensor M18 shielded NO/PNP cable 8m axial
AK1/AP-3A8W Inductive sensor M18 shielded NO/PNP cable 8m axial
Categories:
- MICRO DETECTORS > Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
MORE INFO
Technical details
Discovery properties
| Nominal range | 0.6 mm | |
| Operating range | 0...0,48 mm | |
| Object reference | 4x4mm FE360 | |
| Correction Factor | copper: 0,32 ± 10% / aluminum: 0,24 ± 10% / brass: 0,39 ± 10% / stainless Steel: 0,57 ± 10% | |
| Thermal drift | < 10% | |
| Repeatability | 5% (UB 24V Ta=23°C ±5°C) | |
| Hysteresis | 1 ... 20% | |
Outputs
| Output type | NPN | |
| Exit function | NOT | |
| Switching frequency | 3kHz | |
Electrical data
| Supply voltage | 10 - 30vdc | |
| Absorption of current in the vacuum | ≤ 10mA | |
| Load current | ≤ 100mA | |
| Leakage current | ≤ 10µA | |
| Voltage drop to the output | ≤ 1.5 V @100mA | |
| Maximum residual ripple | ≤10% | |
| LED indicators | Yellow LED output status | |
| Delay to the availability | ≤ 50ms | |
| Protection short circuit | Yes | |
| Protection polarity reversal | Yes | |
| Protection against inductive loads | Yes | |
Mechanical data
| Dimensions | Ø3 / L = 22mm | |
| Mounting | Flush | |
| Weight | 30g | |
| body material | Stainless steel AISI303 | |
| Connections | Cable PUR 2m | |
| Material of the active surface | PBT | |
| Operating temperature | -25°C...+70°C | |
Test/Certifications
| Certifications | CEUL | |
| Electromagnetic compatibility | IEC 60947-5-2 | |
| Shock and vibration | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 | |
| Degree of protection | IP 67 (EN60529) | |
Electrical wiring diagram of the connections
Dimension (mm)
Mounting
