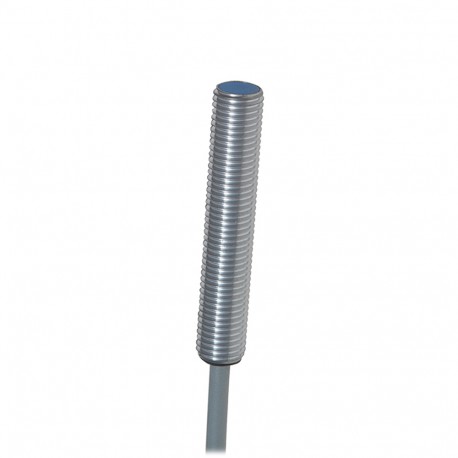

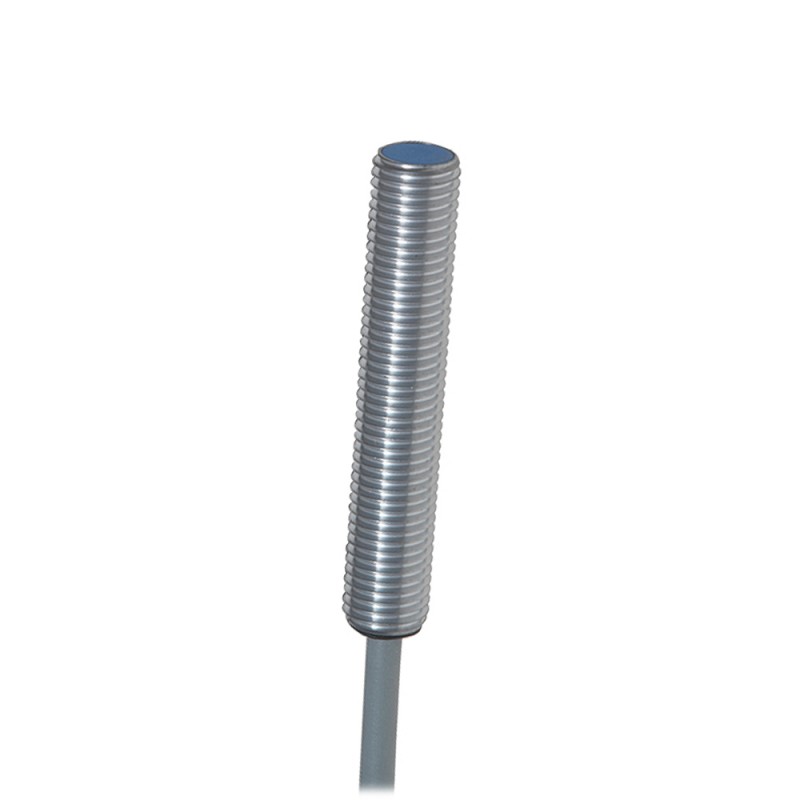

AE1/D1-7A MICRO DETECTORS Inductive sensor M8 0-10 V cable 2m Sensing distance 4 mm
AE1/D1-7A
MICRO DETECTORS
Inductive sensor M8 0-10 V cable 2m Sensing distance 4 mm
Inductive sensor M8 0-10 V cable 2m Sn 4 mm
Encoders
Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Operanting distance | 0…4mm | |
| Standard target | 12x12mm FE360 | |
| Thermal drift of Sr | ±5% (0…+70°C); ±10% (-25°C…0°C) | |
| Repeat Accuracy | 0,3mm (UB 20...30Vcc/Vdc Ta=23°C ±5°C) | |
| Resolution | ≤1µm | |
Outputs
| Output type | Voltage output 0-10V | |
Electrical data
| Operating Voltage | 15 - 30Vdc | |
| No-Load supply current | ≤ 10mA | |
| Load current | ≤ 10mA | |
| 0V - 0 + 0,4V (23°C)+5,2V ± 0,4V (23°C)+10V ± 0,4V (23°C) | ||
| 1600Hz | ||
| Max ripple content | ≤20% | |
| Time delay before availability | ≤50ms | |
| Short-circuit protection | Yes | |
| Reverse Polarity Protection | Yes | |
| Output voltage | 0V - 0 + 0,4V (23°C)+5,2V ± 0,4V (23°C)+10V ± 0,4V (23°C) | |
Mechanical data
| Dimensions | M8 x 1 / L = 45mm | |
| Mounting | Partially shielded | |
| Weight | 50g | |
| Housing Material | Chrome plated brass | |
| Connections | 2m PUR cable - Axial Exit | |
| Active Head Material | PBT | |
| Tightening torque | 3Nm | |
| Operating temperature | -25°C…+70°C | |
Test/Approvals
| Approvals | CE | |
| EMC compatibility | IEC 60947-5-2 | |
| Shocks and vibrations | Vibrations IEC 60068-2-6 / Shocks IEC 60068-2-27 | |
| Degree of protection | IP 67 (EN60529) | |
Accessories
| Supplied Accessories | 2 M8x1 nuts | |
Electrical diagrams of the connections
Dimension (mm)
Installation
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 79 Mbytes |
|
| Download general catalog |
|
