MICRO DETECTORSEncodersAE1/AP-3H MICRO DETECTORS Inductive sensor M8 LD shielded NO/PNP plug M12

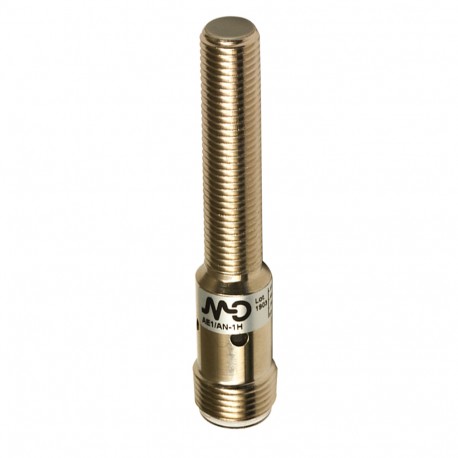

MICRO DETECTORS AE1/AP-3H AE1/AP-3H - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

AE1/AP-3H MICRO DETECTORS Inductive sensor M8 LD shielded NO/PNP plug M12

Reference: AE1/AP-3H

Manufacturer: MICRO DETECTORS

Description:

Inductive sensor M8 LD shielded NO/PNP plug M12
AE1/AP-3H Inductive sensor M8 LD shielded NO/PNP conn. M12

Categories:

  • MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 38,44 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-6 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical features

Nominal sensing distance2mm
Operanting distance0…1,62mm
Standard target8x8mm FE360
Correction Factorcopper: 0,35 / aluminium: 0,43 / brass: 0,52 / stainless steel: 0,78
Thermal drift of Sr< 10%
Repeat Accuracy5% (UB 24V Ta=23°C ±5°C)
Hysteresis1 … 20%

Outputs

Output typePNP
Output FunctionNO
Switching frequency5kHz

Electrical data

Operating Voltage10 - 30Vdc
No-Load supply current≤ 10mA
Load current≤ 200mA
Leakage current≤ 10μA
Output voltage drop≤ 1,8V @200mA
Max ripple content≤10%
LED indicatorsYellow LED output state
Time delay before availability50ms
Short-circuit protectionYes
Reverse Polarity ProtectionYes
Protection against inductive loadsYes

Mechanical data

DimensionsM8 x 1 / L = 60mm
MountingShielded
Weight20g
Housing MaterialNickel-plated brass
ConnectionsM12 Plug
Active Head MaterialPBT
Tightening torque3Nm
Operating temperature-25°C…+70°C

Test/Approvals

ApprovalsCEUR
EMC compatibilityIEC 60947-5-2
Shocks and vibrationsVibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protectionIP 67 (EN60529)

Accessories

Supplied Accessories2 nuts M8x1

Electrical diagrams of the connections


Connector


Dimension (mm)



Installation



Response curves

Disassamento Parallelo
