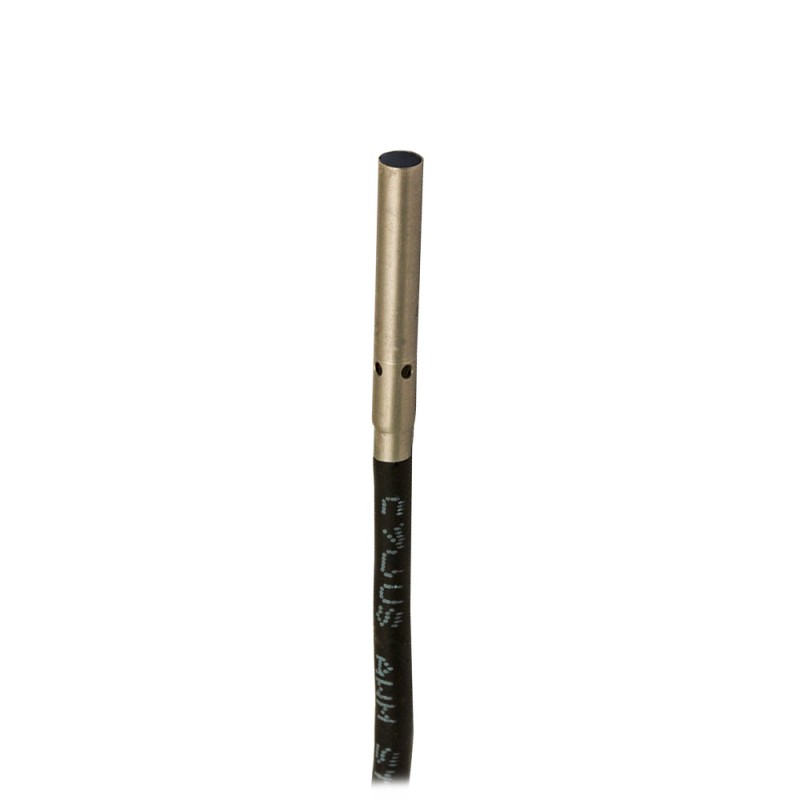

AE1/AN-2A86 MICRO DETECTORS Inductive sensor M8 unshielded NO/NPN cable 5m

Reference: AE1/AN-2A86

Manufacturer: MICRO DETECTORS

Description:

Inductive sensor M8 unshielded NO/NPN cable 5m
AE1/AN-2A86 Inductive sensor M8 unshielded NO/NPN cable 5m

Categories:

  • MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 31,69 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-6 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical features

Nominal sensing distance0,6mm
Operanting distance0…0,48mm
Standard target4x4mm FE360
Correction Factorcopper: 0,32 ± 10% / aluminium: 0,24 ± 10% / brass: 0,39 ± 10% / stainless steel: 0,57 ± 10%
Thermal drift of Sr< 10%
Repeat Accuracy5% (UB 24V Ta=23°C ±5°C)
Hysteresis1 … 20%

Outputs

Output typeNPN
Output FunctionNO
Switching frequency3kHz

Electrical data

Operating Voltage10 - 30Vdc
No-Load supply current≤ 10mA
Load current≤ 100mA
Leakage current≤ 10μA
Output voltage drop≤ 1,5V @100mA
Max ripple content≤10%
LED indicatorsYellow LED output state
Time delay before availability≤ 50ms
Short-circuit protectionYes (auto-reset)
Reverse Polarity ProtectionYes
Protection against inductive loadsYes

Mechanical data

DimensionsØ3 / L = 22mm
MountingShielded
Weight30g
Housing MaterialAISI303 Stainless Steel
Connections2m PUR Cable
Active Head MaterialPBT
Operating temperature-25°C…+70°C

Test/Approvals

ApprovalsCEUL
EMC compatibilityIEC 60947-5-2
Shocks and vibrationsVibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protectionIP 67 (EN60529)

Electrical diagrams of the connections


Dimension (mm)



Installation



Response curves

Disassamento Parallelo
