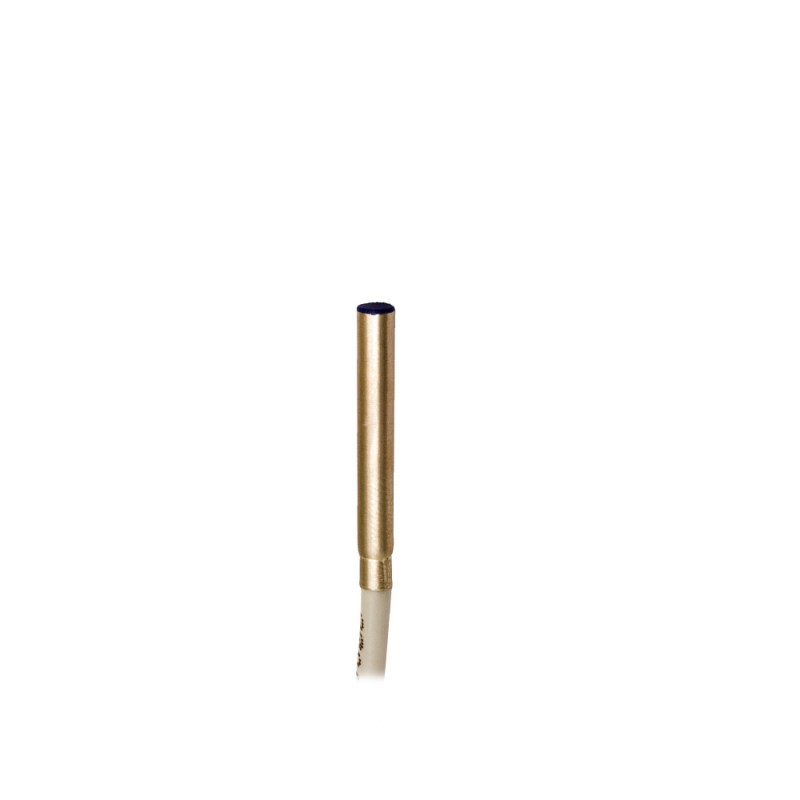

AC1/CN-1A MICRO DETECTORS Inductive sensor Ø4 Sensing distance 0,8 mm NC/NPN cable 2m axial
AC1/CN-1A
MICRO DETECTORS
Inductive sensor Ø4 Sensing distance 0,8 mm NC/NPN cable 2m axial
AC1/CN-1A Inductive sensor Ø4 Sn 0,8 mm NC/NPN cable 2m axial
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 0,8mm | |
| Operanting distance | 0…0,65mm | |
| Standard target | 4x4mm FE360 | |
| Correction Factor | copper: 0,28 ± 10% / aluminium: 0,21 ± 10% / brass: 0,32 ± 10% / stainless steel: 0,63 ± 10% | |
| Thermal drift of Sr | < 10% | |
| Repeat Accuracy | 5% (UB 24V Ta=23°C ±5°C) | |
| Hysteresis | 1 … 20% | |
Outputs
| Output type | NPN | |
| Output Function | NC | |
| Switching frequency | 5kHz | |
Electrical data
| Operating Voltage | 10 - 30Vdc | |
| No-Load supply current | ≤ 10mA | |
| Load current | ≤ 100mA | |
| Leakage current | ≤ 10μA | |
| Output voltage drop | ≤ 1,5V @100mA | |
| Max ripple content | ≤10% | |
| LED indicators | Yellow LED output state | |
| Time delay before availability | ≤ 50ms | |
| Short-circuit protection | Yes (auto-reset) | |
| Reverse Polarity Protection | Yes | |
| Protection against inductive loads | Yes | |
Mechanical data
| Dimensions | Ø4 / L = 30,2mm | |
| Mounting | Shielded | |
| Weight | 30g | |
| Housing Material | stainless steel AISI303 | |
| Connections | 2m PVC Cable | |
| Active Head Material | PBT | |
| Operating temperature | -25°C…+70°C | |
Test/Approvals
| Approvals | CEcULus | |
| EMC compatibility | IEC 60947-5-2 | |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 | |
| Degree of protection | IP 67 (EN60529) | |
Electrical diagrams of the connections
Dimension (mm)
Installation
Response curves
Disassamento Parallelo
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MICRODETECTORS EN.pdf | 4 Mbytes |
|
| Download general catalog |
|
