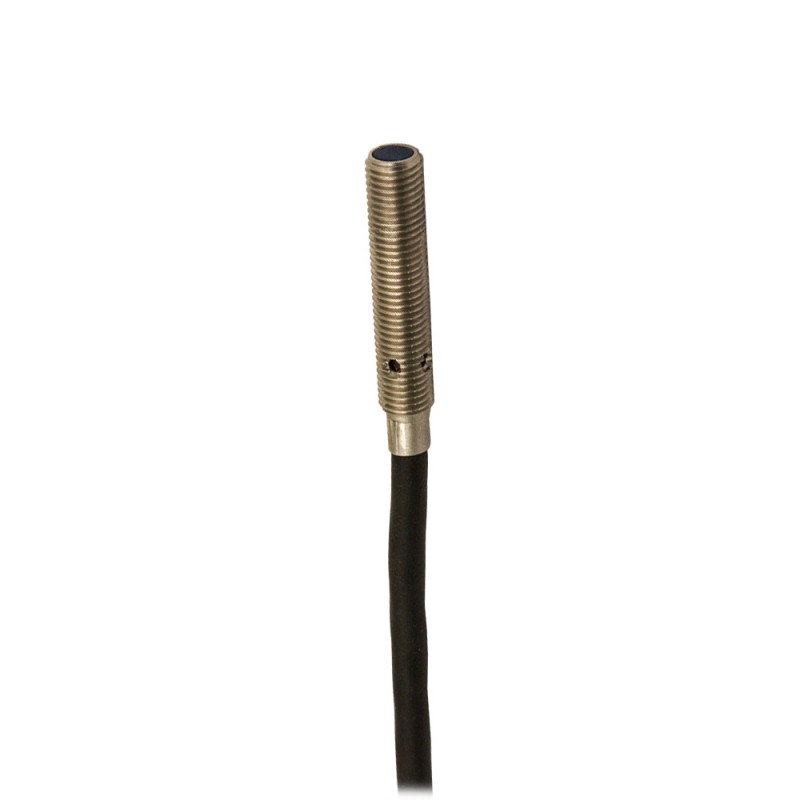

AB1/CP-3A MICRO DETECTORS Inductive sensor M4 NC/PNP Sensing distance 1 mm cable 2m axial
AB1/CP-3A
MICRO DETECTORS
Inductive sensor M4 NC/PNP Sensing distance 1 mm cable 2m axial
Inductive sensor M4 NC/PNP Sn 1 mm cable 2m axial
Encoders
* Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS
Best sellers
▲More info
▲Technical features
| Nominal sensing distance | 1mm | |
| Operanting distance | 0…0,81mm | |
| Standard target | 4x4mm FE360 | |
| Correction Factor | copper: 0,3 ± 10% / aluminium: 0,22 ± 10% / brass: 0,32 ± 10% / stainless steel: 0,57 ± 10% | |
| Thermal drift of Sr | < 10% | |
| Repeat Accuracy | 5% (UB 24V Ta=23°C ±5°C) | |
| Hysteresis | 1 … 20% | |
Outputs
| Output type | PNP | |
| Output Function | NC | |
| Switching frequency | 3,5kHz | |
Electrical data
| Operating Voltage | 10 - 30Vdc | |
| No-Load supply current | ≤ 10mA | |
| Load current | ≤ 100mA | |
| Leakage current | ≤ 10μA | |
| Output voltage drop | ≤ 1,5V @100mA | |
| Max ripple content | ≤10% | |
| LED indicators | Yellow LED output state | |
| Time delay before availability | ≤ 50ms | |
| Short-circuit protection | Yes (auto-reset) | |
| Reverse Polarity Protection | Yes | |
| Protection against inductive loads | Yes | |
Mechanical data
| Dimensions | M4 x 0,5 / L = 22mm | |
| Mounting | Shielded | |
| Weight | 30g | |
| Housing Material | AISI303 Stainless Steel | |
| Connections | 2m PUR Cable | |
| Active Head Material | PBT | |
| Tightening torque | 1,5Nm | |
| Operating temperature | -25°C…+70°C | |
Test/Approvals
| Approvals | CEUL | |
| EMC compatibility | IEC 60947-5-2 | |
| Shocks and vibrations | Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 | |
| Degree of protection | IP 67 (EN60529) | |
Accessories
| Supplied Accessories | 2 nuts M4x0,5 | |
Electrical diagrams of the connections
Dimension (mm)
Installation
Response curves
Disassamento Parallelo
Datasheet - PDF
