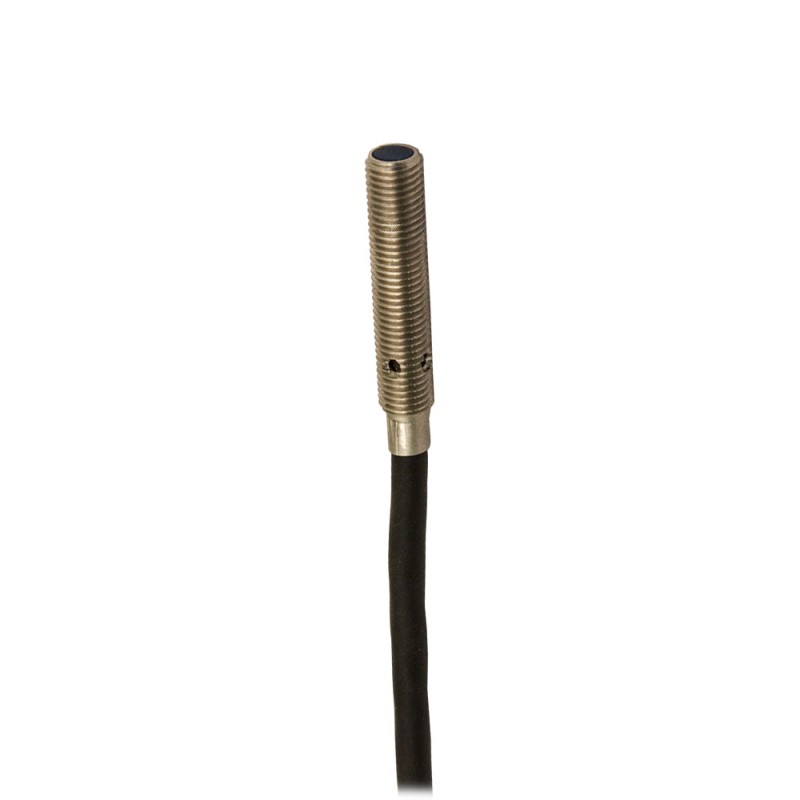

MICRO DETECTORSEncodersAB1/AP-3A MICRO DETECTORS Inductive sensor M4 Sensing distance 1 mm NO/PNP cable 2m axial
MICRO DETECTORS AB1/AP-3A AB1/AP-3A - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

AB1/AP-3A MICRO DETECTORS Inductive sensor M4 Sensing distance 1 mm NO/PNP cable 2m axial

Reference: AB1/AP-3A

Manufacturer: MICRO DETECTORS

Description:

Inductive sensor M4 Sensing distance 1 mm NO/PNP cable 2m axial
AB1/AP-3A Inductive sensor M4 Sn 1 mm NO/PNP cable 2m axial

Categories:

  • MICRO DETECTORS > Encoders

Brand new product in its original packaging covered by the warranties and certifications provided by MICRO DETECTORS

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 72,28 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-6 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Technical details

Detection properties

Detection distance rated1mm
Working distance0...0.81 mm
Obstacle reference4x4mm FE360
Correction factorcopper: 0,3 ± 10% / aluminium: 0,22 ± 10% / brass: 0,32 ± 10% / STAINLESS steel: 0,57 ± 10%
Temperature drift< 10%
Repeatability5% (UB 24V Ta=23°C ±5°C)
Hysteresis1 ... 20%

Outputs

Output typePNP
Output functionNO
Switching frequency3.5 kHz

Electrical data

Supply voltage10 - 30Vdc
Vacuum adsorption10mA
Load current≤ 100mA
Leakage current≤ 10µA
The fall of the output voltage≤ 1.5 V @100mA
Maximum residual ripple≤10%
LED indicatorsYellow LED output status
Delay to the availability≤ 50ms
Protection, short-circuitYou
Reverse polarity protectionYou
Protection for inductive loadsYou

Mechanical data

SizeM4 x 0.5 / L = 22mm
MountingShielded
Weight30g
Body materialSTAINLESS steel AISI303
ConnectionsCable PUR 2m
Material active partPBT
Tightening torque1.5 Nm
Operating temperature-25°C...+70°C

Test/Certifications

CertificationsCEUL
Electromagnetic compatibilityIEC 60947-5-2
Shock and vibrationVibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of ProtectionIP 67 (EN60529)

Accessories

Accessories included2 nuts M4x0,5
