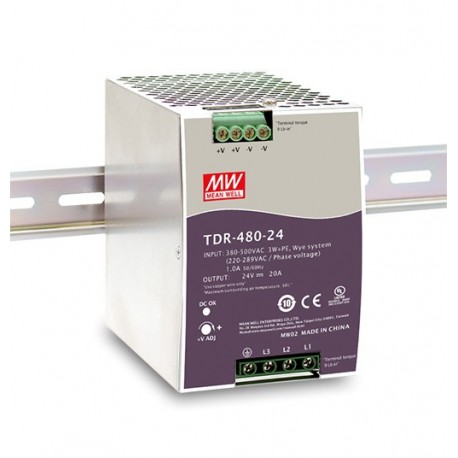

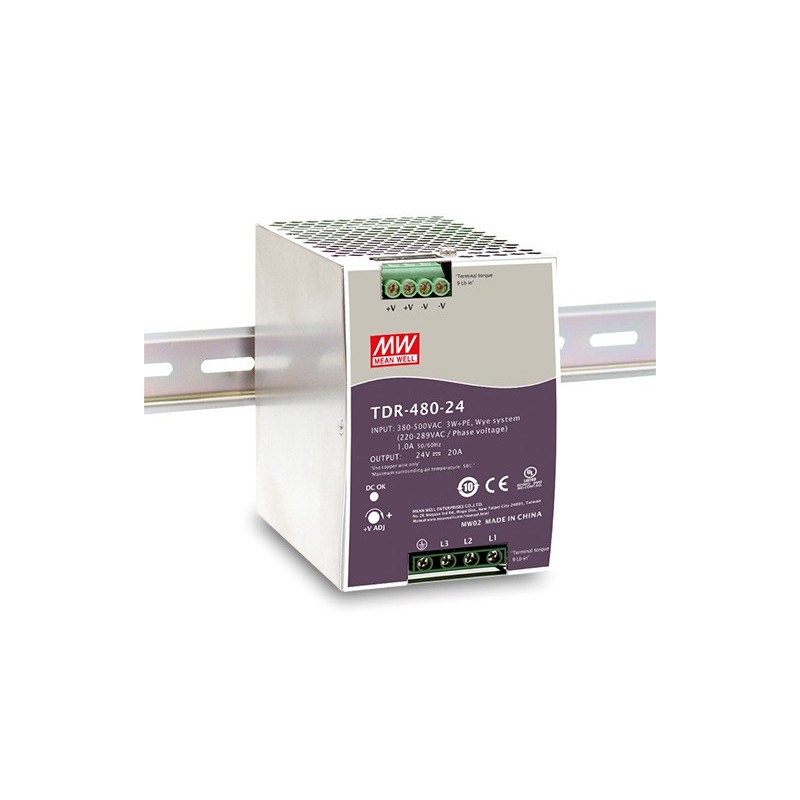

TDR-480-24
MEANWELL
1
Available Ship on today
AC-DC Industrial 3-phase DIN rail power supply with PFC and Constant Current, Output 24VDC / 20A
DIN RAIL > TDR
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Name | TDR-480-24 |
---|---|
Long Description | Switch mode Power supply three-Phase. Format to install on a Din Rail. Input range three-Phase340-550Vca47-63Hz. Can be run in two phases. Output voltage24vdc.(Adjustable with potentiometer 24-28Vcc). Output intensity:20A.Range of output current 0-20A according to demand load. Power:480W. Factor Corrector, Power>0,86. Alarm output voltage to the correct DC-Ok. Efficiency:To 92.5%. Working temperature: from-30up+70ºCof ambient temperature. Consult the technical data sheet to see the curves of drift. Dimensions (Width x Height x depth):85,5 x 125,2 x 128,5 mm 3 years of warranty. Manufacturer: MEANWELL. The series TDR are power supplies DIN rail three-phase, with metallic casing. With wide input range from 340-550Vca have a very compact size, to 85.5 mm for the TDR-480 or so only 110 mm for the TDR-960.Models are with high efficiency of up to 94,5%, and PFC function is active. Can be installed on DIN rail TS-35 / 7,5 or 15. Among its functionalities we have limiting circuit of constant current signal through relay DC OK or function of load distribution in the models of 960W. |
Country of Origin | Taiwan |
Stock | Yes |
Manufacturer | MEAN WELL |
Product type | Power supply AC/DC |
Format | Din Rail |
Subformato | Narrow |
Applications | Industrial, Telecommunications |
Series | TDR-480 |
Warranty (Years) | 3,00 |
Height (mm) | 128.50 |
Width (mm) | 125.20 |
Long/Background | 85.50 |
Type of Entry CA | Three-phase |
AC input Min | 340,00 |
AC input Max | 550,00 |
Input frequency | 50 Hz, 60 Hz |
Input connector | Screw-Type |
Output voltage | 24,00 |
Power (W) | 480,00 |
Peak Power (W) | Four hundred eighty |
Output connector | Screw-Type |
Fan | Yes |
Alarms | Output OK |
Isolation (V) | 3.000,00 |
Approvals | EC, EAC, UL |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG MEANWELL EN.pdf | 10 Mbytes |
