SPD-20-277P
MEANWELL
1
Available Ship on today

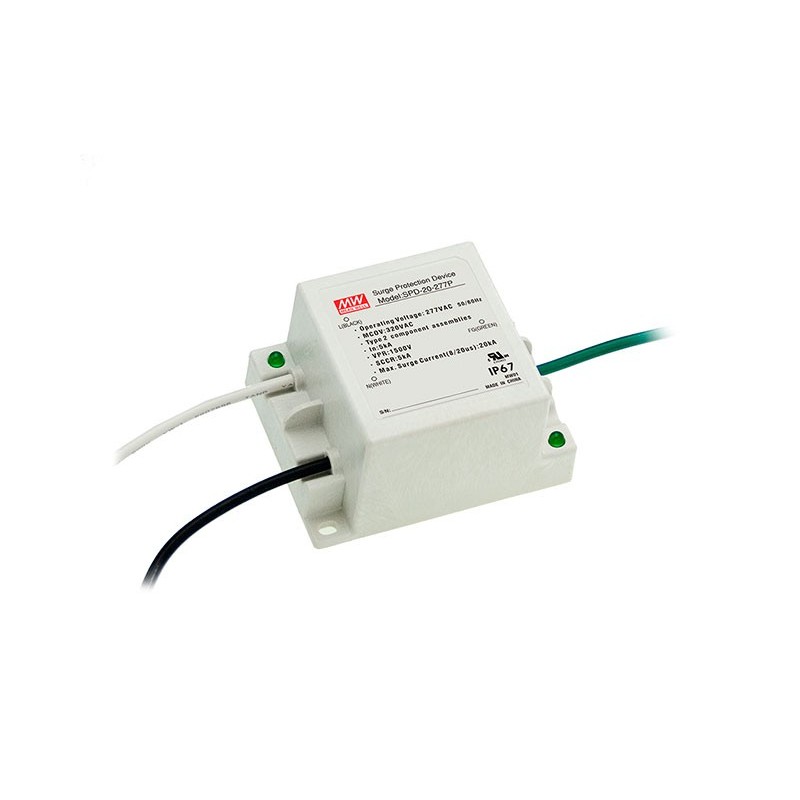

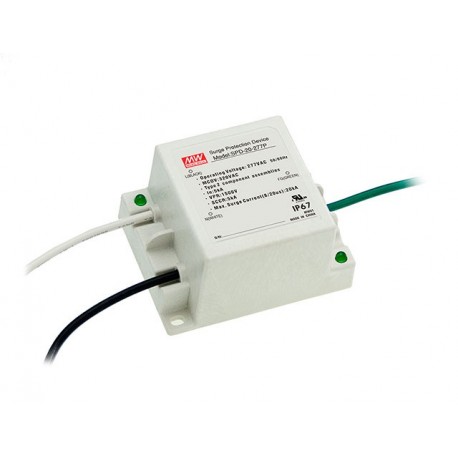

Surge protection device for 277VAC 50/60Hz, 320VAC, Voltage Protection 1500V, Max surge 20kA, Parallel connection
LED DRIVERS > SPD
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Name | SPD-20-277P |
---|---|
Long Description | Protector of transients. Format box of waterproof plasticIP67. Input voltage nominal277Vca. 47-63Hz. Maximum working voltage continuous320Vca. Voltage protectionrated1500V(between line-to-ground, neutral-to-ground and line-to-neutral). Rated discharge 5kA. Maximum transient current 20kA. Time of response <25ns. Connection in parallel with the electric grid. Led indicator of operation. Working temperature: from-40ºCup+70 ° Cof ambient temperature. Dimensions (Length x Width x Height) [mm]:90 x 70 x 50. 3 years of warranty. Manufacturer: MEAN WELL. The protectors series SDP are devices designed to protect sensitive equipment of an installation when we have problems with the electric grid. Transients or voltage surges of high intensity is typically occur on the electrical network due to sudden changes in consumption or other problems of an electrical supply. This generates an overvoltage in the electrical network of high energy that can damage connected equipment. The series SPD-20 allow us to protect any sensitive electronic equipment like e.g. transformers LED or LED drivers in lighting public or connected equipment in areas with common problems on the electrical network such as industrial estates. The installation is performed in parallel with the electric grid so that we don't have to connect a protective device but a by-line and can be mounted easily on a Din rail and the led indicator of operation visible. For its proper functioning, we must have a good grounding already in case of overvoltage, the excess energy was derived to the earth. We must have an impedance less than 3 ohms to ground to work properly. This team doesn't protect us in case of caiía beam direct that can generate a voltage of more than a million volts. For this type of problem, there are protectors specifically for ray. |
Country of Origin | China |
Manufacturer | MEAN WELL |
Product type | Protector against Transient |
Format | Din Rail |
Subformato | IP67 |
Applications | Building automation, Lighting, household Appliances, Industrial, Medical, Solar, Telecommunications |
Series | SPD-20 |
Warranty (Years) | 3,00 |
Height (mm) | 50.00 |
Width (mm) | 70.00 |
Long/Background | 90.00 |
Voltage Protection | 1.500,00 |
Intensity of Output Maximum (mA) | 20.000.000,00 |
Type of Entry CA | Single-phase |
AC input Max | 320,00 |
Input frequency | 50 Hz, 60 Hz |
Input connector | Cable |
Output connector | Cable |
Approvals | UL |
