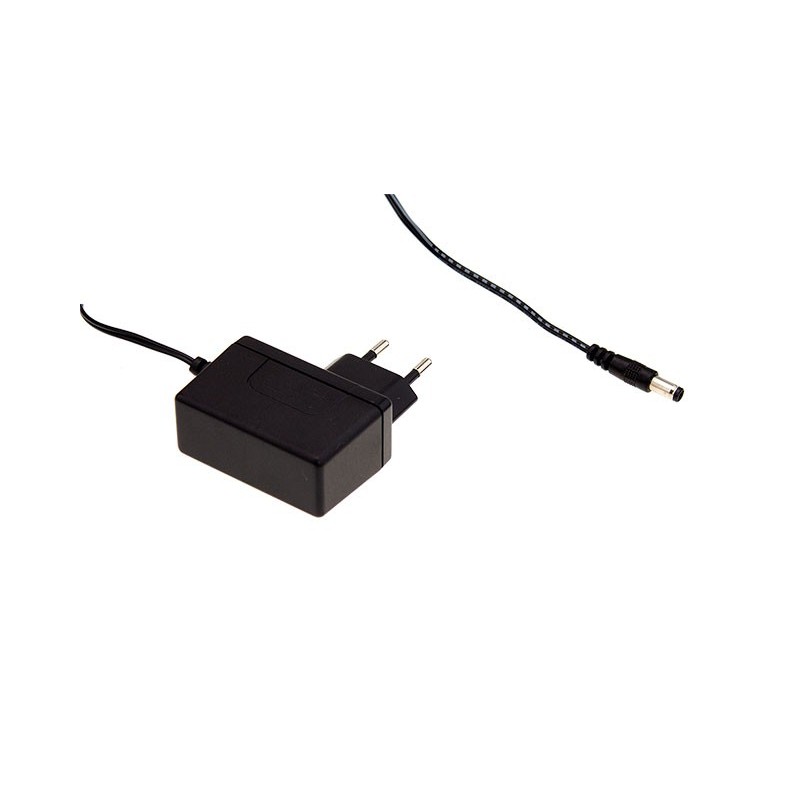

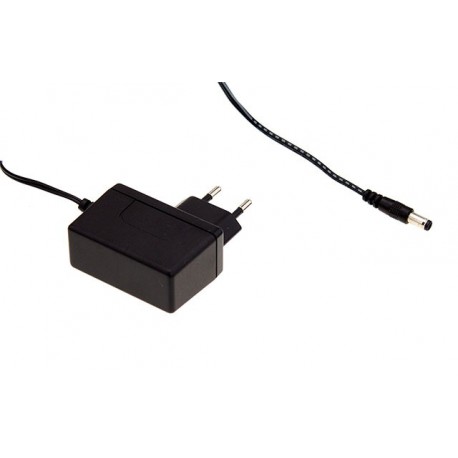

SGA12E15-P1J MEANWELL AC-DC Slim wall mounted adaptor, Input range 90-264VAC with 2 pole Euro plug, Output 1..
SGA12E15-P1J
MEANWELL
AC-DC Slim wall mounted adaptor, Input range 90-264VAC with 2 pole Euro plug, Output 15VDC / 0.8A
ADAPTERS
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
More info
▲| Name | SGA12E15-P1J |
|---|---|
| Long Description | Wall adapter with input plug for Europe. Feeder for connection to a wall outlet. Range of universal input90-264vac47-63Hz. Output voltage15vdc. Output intensity0.8 To. Range of output current 0-0,8 according To the demand load. Power:12W. Efficiency typical:84,5%. Class ll without the taking of land. Consumption without load<0,075 W. Working temperature: from-20up+60 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift. Dimensions (Length x Width x Height) [mm]:62.2 x to 27.4 x 39.5. 3 years of warranty. Manufacturer: MEAN WELL. The series LMS are commuting sources in the format of a wall with input connector and european connector type output Jack 5.5 x 2.1 x 11 mm (outer diameter, inner and length), and center positive. The series SGA12 have a low consumption without load, only 0,0075 W and comply with the latest requirements of energy efficiency (NivelVl).
|
| Country of Origin | Taiwan |
| Stock | Yes |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Format | Wall |
| Subformato | Pin AC European |
| Applications | Industrial, Telecommunications |
| Series | SGA12 |
| Warranty (Years) | 3,00 |
| Height (mm) | 39.70 |
| Width (mm) | 27.40 |
| Long/Background | 62.20 |
| Type of Entry CA | Single-phase |
| AC input Min | 90,00 |
| AC input Max | 264,00 |
| Input frequency | 50 Hz, 60 Hz |
| Input connector | European Plug |
| Output voltage | 15,00 |
| Power (W) | 12,00 |
| Peak Power (W) | Twelve |
| Output connector | P1J Tunnig Fork 5.5 x 2.1 x 11. C+ |
| Isolation (V) | 4.242,00 |
| Approvals | CE, TÜV |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MEANWELL EN.pdf | 10 Mbytes |
|
