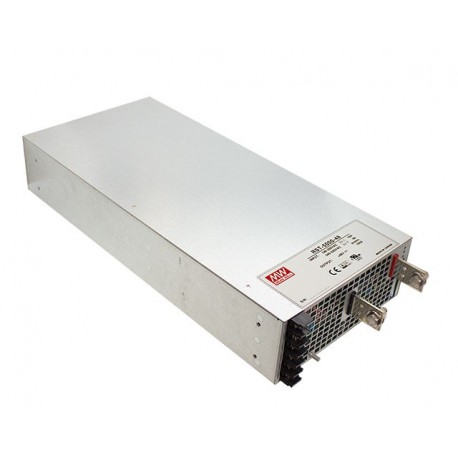

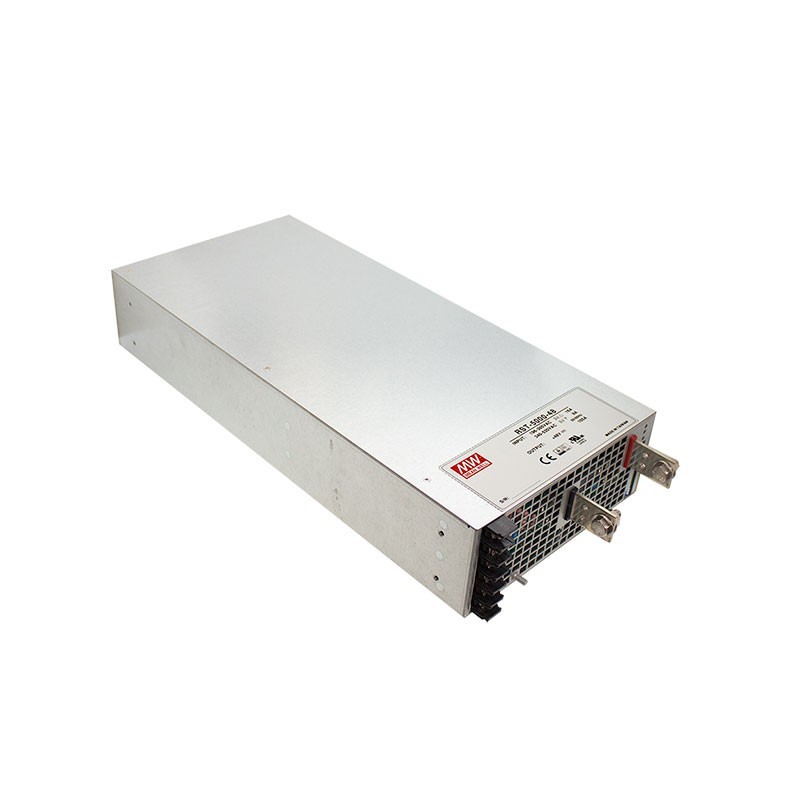

RST-5000-24CC MEANWELL AC-DC Single output power supply with PFC, 3 wire 196-305 or 4 wire 340-530 VAC, Outp..

Switch mode power supply three-phase.

Format in box.

Input rangethree-phase star with neutral3x340-530Vcaor input three-phase delta without neutral 3 x 196-305Vca. 47-63Hz.

You can also operate with single phase input from 196-305Vca (consult the technical data sheet in the attached documents).

You need the neutral to operate on three-phase to 380V.

Output voltage24vdc. Adjustable by potentiometer (23,5-28,8 Vdc).

Output intensity200A. Range of output current 0-200A according to demand load.

Factor Corrector, Power>0,95.

Power:Four thousand eight hundredW.

Efficiency typical:89%.

Remote on / off.

Additional output of 12V 0,1 A for power-on and remote shutdown.

Function of sensing to compensate the voltage drop in the cables up to 0.3 V.

Alarm output voltage to the correct DC-Ok, power supply failure AC-Fail and fan failure Fan-Fail.

Voltage and Current programmable Output.

Paralelizable up to 4 units.

Working temperature: from -30 up +70 ° C of ambient temperature. Consult the technical data sheet to see the curves of drift.

Dimensions (Length x Width x Height) [mm]:460 x 211 x 83.5.

5 years of warranty.

Manufacturer: MEAN WELL.

The series RST-5000 switching power supplies with three phase input. Have a high efficiency and power factor.

We can parallelize up to 4 units to increase power or achieve redundancy.

The output voltage can be set between 20%and 120% of the nominal output voltage by an external signal of 1-6v.

The output current can also be programmed between 20% and 100% of its value payroll with an external signal of 1-5vdc.

The behavior before an over-load can be set to keep the current constant by reducing the output voltage or power-off after 5 seconds of the overload.
