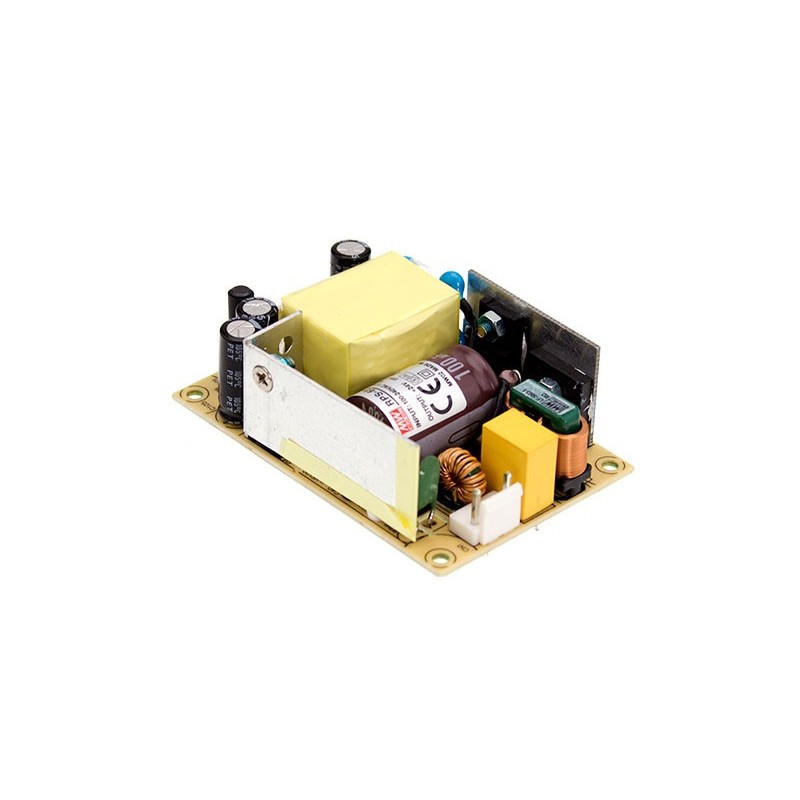

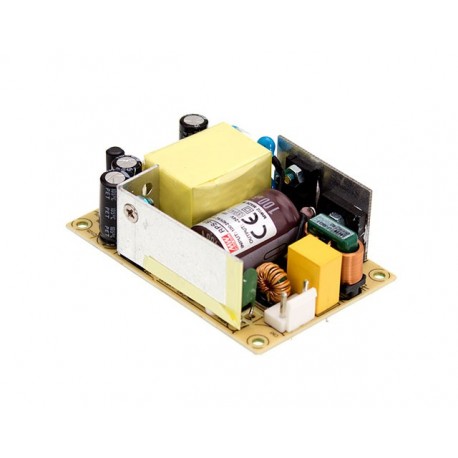

RPS-65-15 MEANWELL AC-DC Single output medical Open frame power supply, Output 15VDC / 4.34A, 2xMOPP
RPS-65-15
MEANWELL
AC-DC Single output medical Open frame power supply, Output 15VDC / 4.34A, 2xMOPP
OPENFRAME MEDICAL > RPS
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
More info
▲| Name | RPS-65-15 |
|---|---|
| Long Description | Medical Power supply in Open Format(Open-Frame). Range of universal Input80-264vac47-63Hz. Output voltage15vdc.Adjustable by potentiometer (13,5-16,5 Vdc). Output intensity4,34 To. Range of output current 0-4,34 according To the demand load. Power:65,1 W. Source Certified for medical applications2 xMOPP(the patient protection). Leakage current < 100µA. Consumption without load<0,1 W. Efficiency:89%. Working temperature: from-30up+70ºCof ambient temperature. Consult the technical data sheet to see the curves of drift. Dimensions (Length x Width x Height) [mm]:76.2 x 50.8 x 24. 3 years of warranty. Manufacturer: MEAN WELL. The series RPS-65 power supply certified for medical use with patient protection, 2 x MOPP (means of patient protection). They have a double protection between input and output 2xMOPP. Have a leakage current (contact current) is very low for a greater security in the application. Can operate with cooling by free air circulation or provide a higher power through the use of an external fan. |
| Country of Origin | China |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Format | Open Format |
| Subformato | 3"x2" |
| Applications | Industrial, Medical, Telecommunications |
| Series | RPS-65 |
| State | Recommended Model |
| Warranty (Years) | 3,00 |
| Height (mm) | Twenty four |
| Width (mm) | 50.8 |
| Long/Background | 76.2 |
| Type of Entry CA | Single-phase |
| AC input Min | 80,00 |
| AC input Max | 264,00 |
| Input frequency | 50 Hz, 60 Hz |
| Input connector | Plug-in |
| Output voltage | 15,00 |
| Power (W) | 65,10 |
| Peak Power (W) | 71.6 |
| Output connector | Plug-in |
| Isolation (V) | 4.000,00 |
| Approvals | CE, UL |
