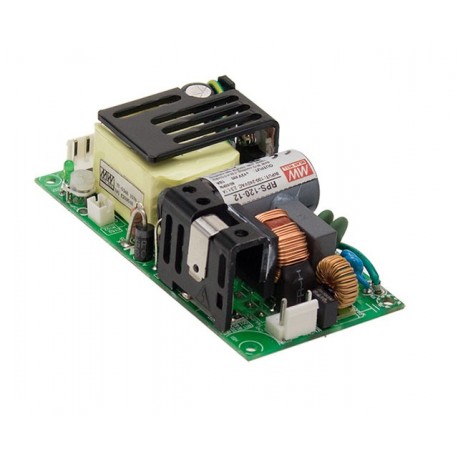

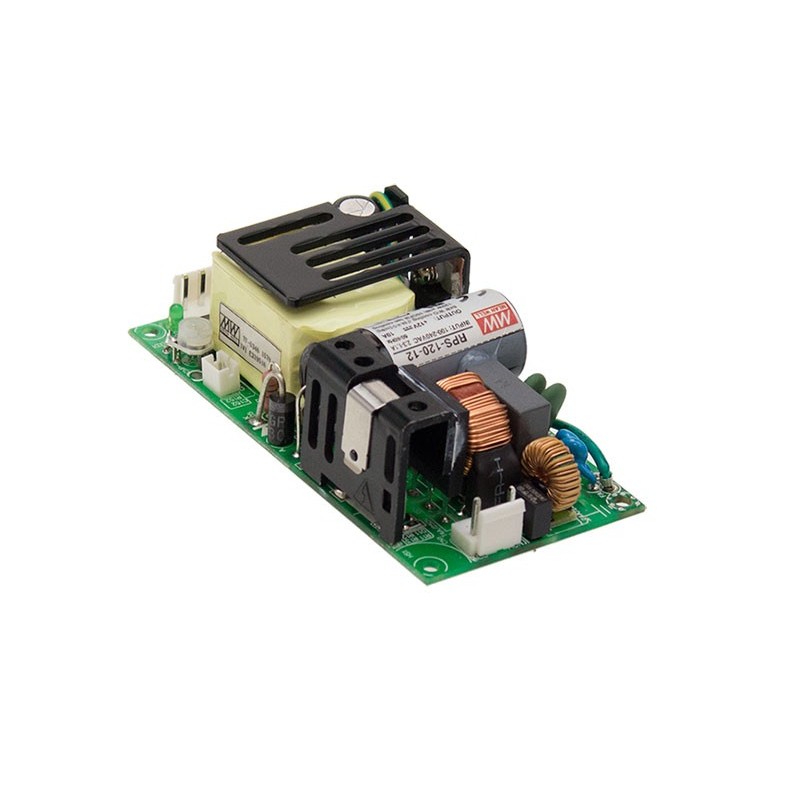

RPS-120-48 MEANWELL AC-DC Open frame Medical power supply, Output 48VDC / 1.75A, EN60601 2xMOPP, compact siz..
RPS-120-48
MEANWELL
AC-DC Open frame Medical power supply, Output 48VDC / 1.75A, EN60601 2xMOPP, compact size 4 inch x 2 inch
OPENFRAME MEDICAL > RPS
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Best sellers
▲More info
▲| Name | RPS-120-48 |
|---|---|
| Long Description | Medical Power supply in Open Format(Open-Frame). Range of universal Input80-264vac47-63Hz. Output voltage48vdc.Adjustable by potentiometer (45,6-50,4 Vdc). Output intensity1.75 To. Range of current output 0-1,75 according To the demand load. Power:84W. Source Certified for medical applications2 xMOPP(the patient protection). Leakage current < 190µA. Consumption without load<0,3 W. Efficiency:91%. Working temperature: from-30up+70ºCof ambient temperature. Consult the technical data sheet to see the curves of drift. . Dimensions (Length x Width x Height) [mm]:101.6 x 50.8 x 29. 3 years of warranty. Manufacturer: MEAN WELL. The series RPS-120 power supply certified for medical use with patient protection, 2 x MOPP (means of patient protection). They have a double protection between input and output 2xMOPP and protection between input and ground 1xMOPP. Have a leakage current (contact current) is very low for a greater security in the application. Can operate with cooling by free air circulation or provide a higher power through the use of an external fan. |
| Country of Origin | China |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Format | Open Format |
| Subformato | 4"x2" |
| Applications | Industrial, Medical, Telecommunications |
| Series | RPS-120 |
| State | Recommended Model |
| Warranty (Years) | 3,00 |
| Height (mm) | Twenty nine |
| Width (mm) | 50.8 |
| Long/Background | 101.6 |
| Type of Entry CA | Single-phase |
| AC input Min | 80,00 |
| AC input Max | 264,00 |
| Input frequency | 50 Hz, 60 Hz |
| Input connector | Plug-in |
| Output voltage | 48,00 |
| Power (W) | 84,00 |
| Peak Power (W) | One hundred twenty |
| Output connector | Plug-in |
| Alarms | Powerfail, Output OK |
| Isolation (V) | 4.000,00 |
| Approvals | CE, UL |
