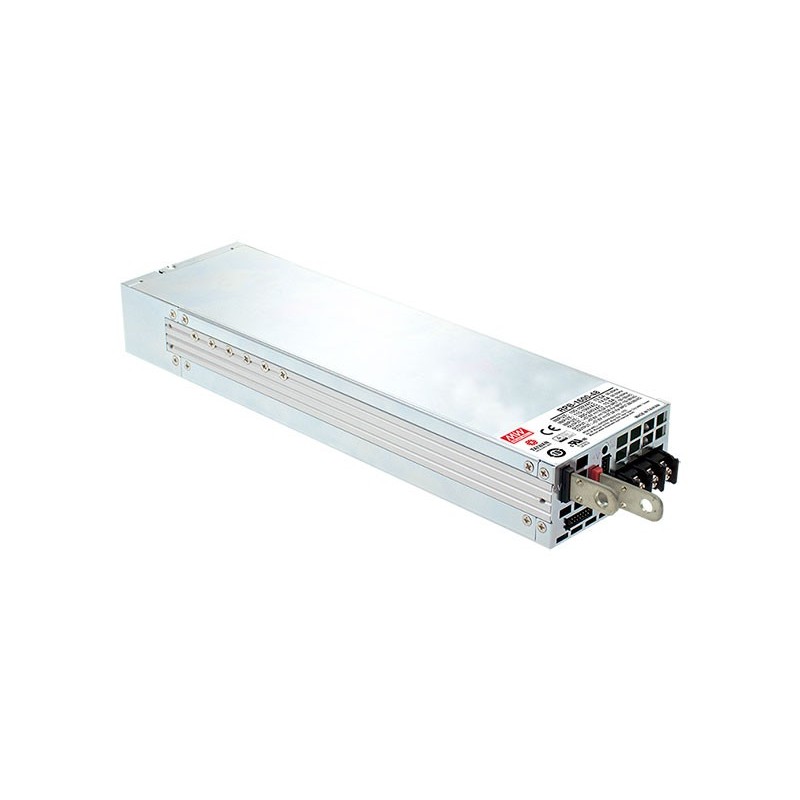

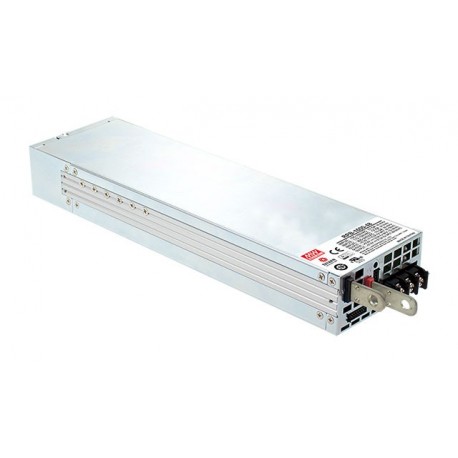

RPB-1600-12 MEANWELL 1600W Intelligent Single Output Battery Charger, 12V / 100A, PMBus protocol
RPB-1600-12
MEANWELL
1600W Intelligent Single Output Battery Charger, 12V / 100A, PMBus protocol
CHARGERS
* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
More info
▲| Name | RPB-1600-12 |
|---|---|
| Long Description | Battery charger programmable via ITwoC and PMBus. Load in 3 stages. Format metal box. Range of universal input90-264vac. 47-63Hz. Absorption voltageTo 14.4 Vdc. Float voltageTo 13.8 Vdc. Adjustable by potentiometer (11,5-a 15.1 v Dc). ProgrammableITwoC and PMBusfrom 75% to 125%. Intensity of load100A. ProgrammableITwoC and PMBusfrom 20% to 100%. Power:1440W. Type of batteries:Gel, AGM, wet and Lithium-Iron and Lithium-Manganese. Battery capacity:330-1000Ah. Efficiency typical:91%. Paralelizable up to 3 units with sharing of active current and diode mosfet protection. Factor corrector, power>0,97to 230vac at full load. Remote on / off. Auxiliary output Stand-by 5V 0.3 A. Auxiliary output of 12V 0.8 A. 3-color LED charging status indicator. Working temperature: from-30up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift. Dimensions (Length x Width x Height) [mm]:300 x 85 x 41. 5 years of warranty. Manufacturer: MEAN WELL. The series RPB-1600 are chargers of lead-acid battery, Gel, AGM, wet, Lithium-Iron and Lithium-Manganese with possibility to configure the load curves by using ITwoC and PMBus, and optionally via CANBus. We can schedule the tensions of absorption, charge current and float voltage to suit to our batteries. Can be connected in parallel up to 3 chargers protected by a diode, Mosfet protection of investment of the integrated current. They have a wide range of temperature from -30ºC up to +70ºC. The tension can also be adjusted via a potentiometer. Have a high efficiency and auxiliary output stand-by as well as an auxiliary output of 12V. The chargers of the series RPB-1600 offers the maximum flexibility to adapt to any type of batteries. |
| Country of Origin | Taiwan |
| Manufacturer | MEAN WELL |
| Product type | Chargers |
| Format | Box |
| Subformato | Grid |
| Applications | Industrial, Solar, Telecommunications |
| Series | RPB-1600 |
| State | New |
| Warranty (Years) | 5,00 |
| Height (mm) | 41.00 |
| Width (mm) | 85.00 |
| Long/Background | 300.00 |
| Type of Entry CA | Single-phase |
| AC input Min | 90,00 |
| AC input Max | 264,00 |
| Input frequency | 50 Hz, 60 Hz |
| Input connector | Screw-Type |
| Output 1 | +12 |
| Power (W) | 1.440,00 |
| Battery type | Lead, AGM, Wet, Li-ion |
| Oh | 330, 350, 400, 550, 600, 1000 |
| Charge stages | Three |
| Output connector | Screw-Type |
| Fan | Yes |
| Alarms | Over Temperature, Output OK |
| Interface | I2C, PMBus |
| Isolation (V) | 3.000,00 |
| Approvals | CE, UL |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MEANWELL EN.pdf | 10 Mbytes |
|
