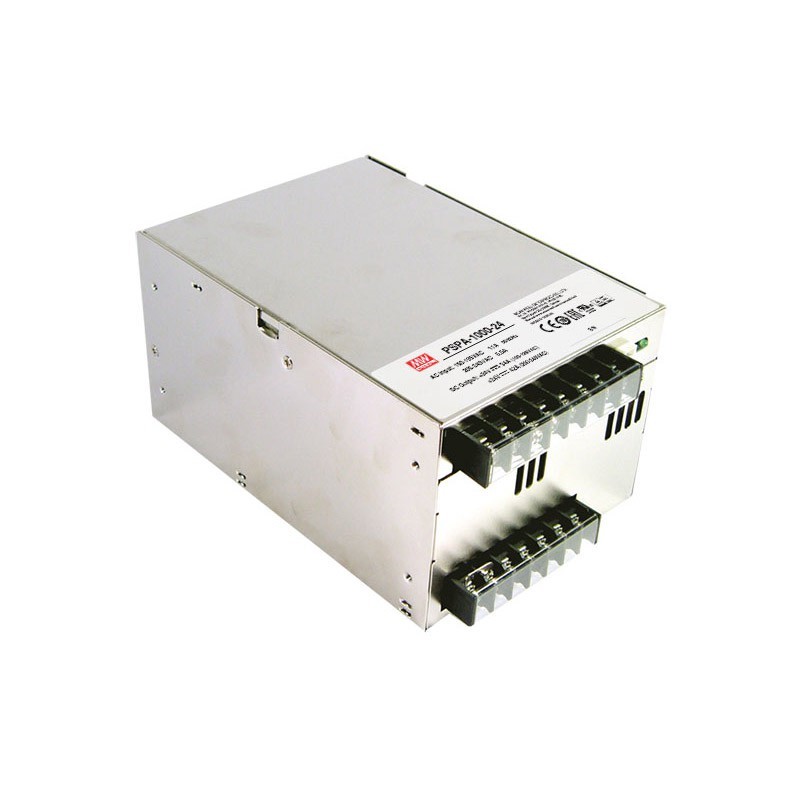

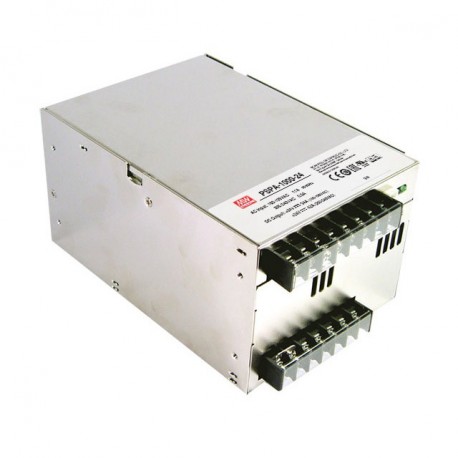

PSPA-1000-24 MEANWELL AC-DC Single output Enclosed power supply, Output 24VDC / 42A, PFC and Parallel functi..

Power supply in the format box.

Premium series from MEANWELL.

Format in metal box.

Range of universal input90-264vac47-63Hz.

Output voltage24vdc. Adjustable by knob (22-28Vcc).

Output intensity42A. Range of output current 0-42A according to demand load.

Power:1008W.

Efficiency typical:93,5%.

Paralelizable up to 4 units.

Factor corrector, power>0,95to 230vac and full load.

Alarm signal output Ok (DC-Ok).

Remote on / off.

Role of sensing in order to compensate the drop voltage on the output cables.

Protection against short circuit, over load, over voltage and temperature.

Working temperature: from-20ºCup+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.

Dimensions (Length x Width x Height):170 x 120 x 93mm.

5 years of warranty.

Manufacturer: MEAN WELL.

The series PSPA-1000, are the sources of metal for industrial applications, automation and control factory, application of radio frequency, laser machines and instruments of measurement and testing. Have a correction factor power active. Sources with a high-efficiency multiple protections (short circuit, over load, over voltage and temperature. Possess a system on and off remote. Incorporate an alarm signal output OK (DC-OK).

The sources PSPA-1000 carry integrated the function of sensing to compensate the voltage drop on the output cables (depending on the thickness of the cable and the amount of amps, as well as the distance causes it to lose tension, compensándolo this function). Is can compensate for up to 0.5 V.

The integrated fan is controlled by the internal temperature, in such a way that it rotates at the speed necessary to maintain the equipment properly cooled without generating more noise than necessary.

We can parallelize up to 4 units to increase the power (do not use more than 90% of the power per source). Protection against overload and short circuit by constant current, which allows you to start heavy loads such as motors or capacitive loads or inductive.

The series PSPA-1000 is certified, CE, UL, EAC. Part of the series PREMIUM MW.
