> MEANWELL>OPEN FRAME>PID>PID-250B-C MEANWELL AC-DC Dual output closed frame Power supply, Output 24VDC / 9.4A and 5VDC / 5A, isolated..
Previous Product Next Product

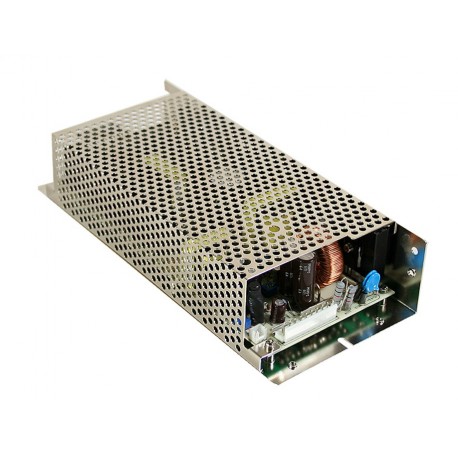

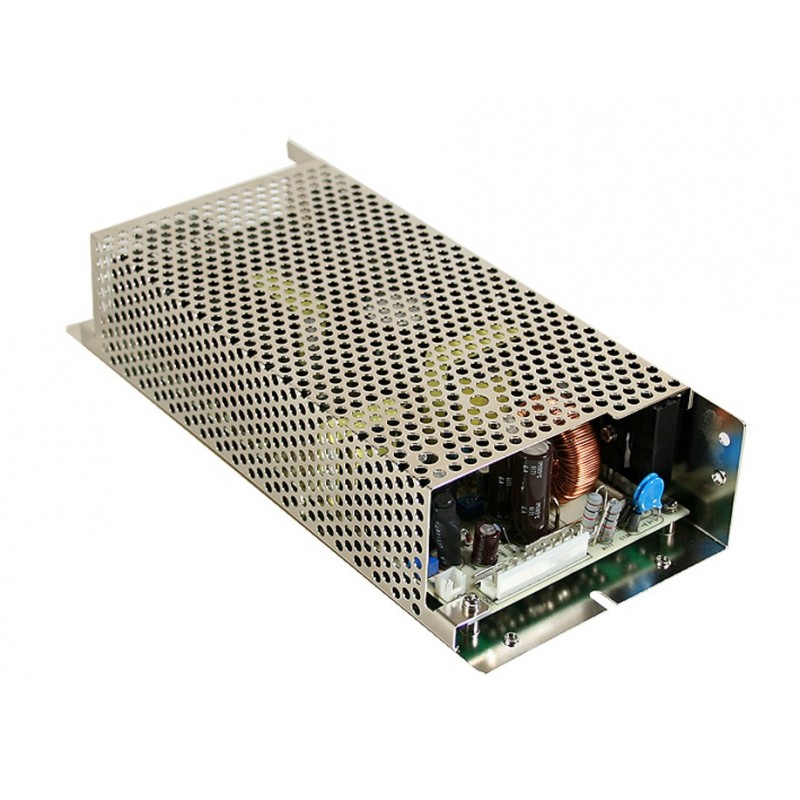

PID-250B-C MEANWELL AC-DC Dual output closed frame Power supply, Output 24VDC / 9.4A and 5VDC / 5A, isolated.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

PID-250B-C MEANWELL AC-DC Dual output closed frame Power supply, Output 24VDC / 9.4A and 5VDC / 5A, isolated..

PID-250B-C

MEANWELL

Available Ship on today

AC-DC Dual output closed frame Power supply, Output 24VDC / 9.4A and 5VDC / 5A, isolated outputs, With cover

More details


OPEN FRAME > PID

* Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Go to successor article: PID-250B PID-250B

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Name PID-250B-C
Long Description

Power supply in Format Grid with PFC.

Range of universal Input90-264vac47-63Hz.

Outputs:

+5vdc:

    • Minimum intensity of output5A.
    • Maximum output currentFiveAmps.

+24vdc:

    • Minimum intensity of output9.4 To.
    • Maximum output current16,7Amps.

Power:250,6 W.

Efficiency typical: 86%.

Factor corrector, power>0,92to 230vac at full load.

Operating temperature range from-20up+70ºC.

Dimensions (Length x Width x Height) [mm]:250 x 105,4 x 53.

3 years of warranty.

Manufacturer: MEAN WELL.

The series PID-250 are a source of power certified, with two outputsisolatedand correction Factor Power active. They also include remote control option on the output 1 and the possibility of providing up to 170% of peak current during 10 seconds in this output.
Country of Origin China
Manufacturer MEAN WELL
Product type Power supply AC/DC
Format Box
Subformato Grid
Applications Industrial, Telecommunications
Series PID-250-C
Warranty (Years) 3,00
Height (mm) 53.00
Width (mm) 105.40
Long/Background 250.00
Type of Entry CA Single-phase
AC input Min 90,00
AC input Max 264,00
Input frequency 50 Hz, 60 Hz
Input connector Plug-in
You Need To Load Minimum No
Output 1 +5
Output 2 +24
Power (W) 250,60
Peak Power (W) 250.6
Output connector Plug-in
Alarms Powerfail, Output OK
Isolation (V) 3.000,00
Approvals CE, UL
