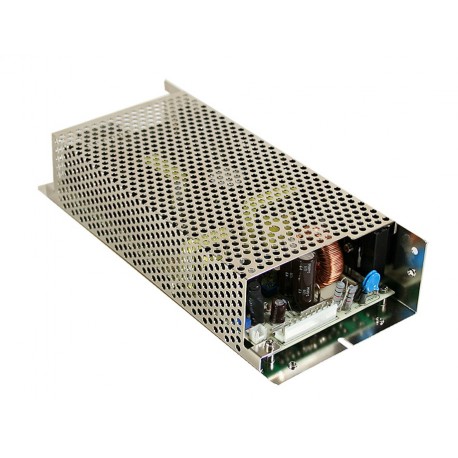

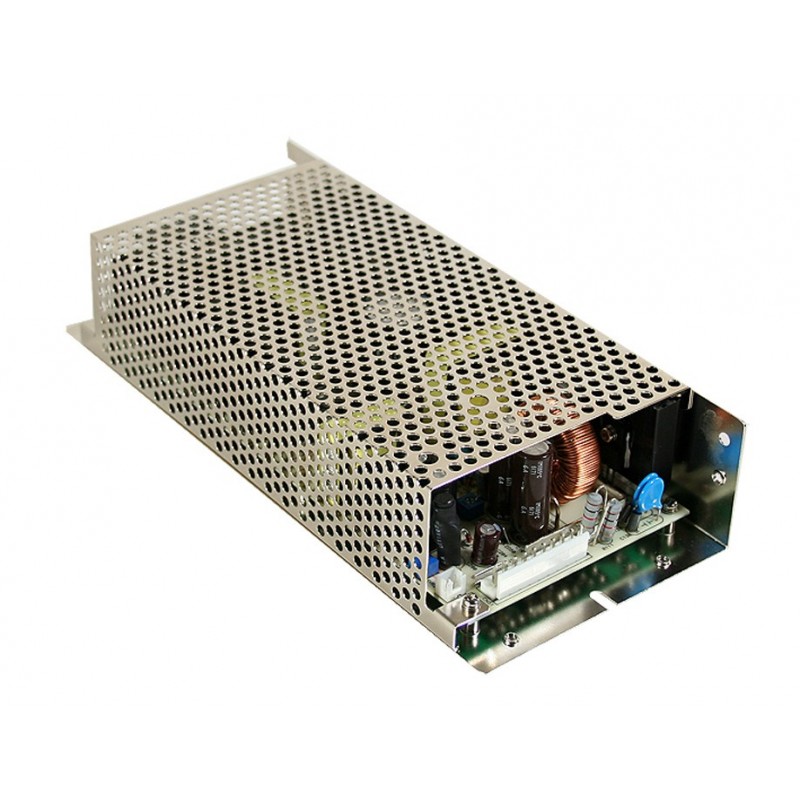

PID-250A-C MEANWELL AC-DC Dual output closed frame Power supply, Output 12VDC / 15A +5VDC / 5A, isolated out..
PID-250A-C
MEANWELL
18
AC-DC Dual output closed frame Power supply, Output 12VDC / 15A +5VDC / 5A, isolated outputs
OPEN FRAME > PID
Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
Best sellers
▲More info
▲| Name | PID-250A-C |
|---|---|
| Long Description | Power supply in Format Grid withPFC. Range of universal Input90-264vac47-63Hz. Outputs: +5vdc:
+12vdc:
Power:205W. Efficiency typical:83%. Factor corrector, power>0,92to 230vac at full load. Operating temperature range from-20up+70ºC. Dimensions (Length x Width x Height) [mm]:250 x 105,4 x 53. 3 years of warranty. Manufacturer: MEAN WELL. The series PID-250 are a source of power certified, with two outputsisolatedand correction Factor Power active. They also include remote control option on the output 1 and the possibility of providing up to 170% of peak current during 10 seconds in this output. |
| Country of Origin | China |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Format | Box |
| Subformato | Grid |
| Applications | Industrial, Telecommunications |
| Series | PID-250-C |
| Warranty (Years) | 3,00 |
| Height (mm) | Forty |
| Width (mm) | Ninety five |
| Long/Background | Two hundred twenty two |
| Type of Entry CA | Single-phase |
| AC input Min | 90,00 |
| AC input Max | 264,00 |
| Input frequency | 50 Hz, 60 Hz |
| Input connector | Plug-in |
| You Need To Load Minimum | No |
| Output 1 | +5 |
| Output 2 | +12 |
| Power (W) | 205,00 |
| Peak Power (W) | Two hundred five |
| Output connector | Plug-in |
| Alarms | Powerfail, Output OK |
| Isolation (V) | 3.000,00 |
| Approvals | CE, UL |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LED MEANWELL EN.pdf | 7 Mbytes |
|
| PDF CATALOGUE POWER SUPPLY MEANWELL EN.pdf | 9 Mbytes |
|
