Images are for illustrative purposes only. Please refer to data sheet for details.

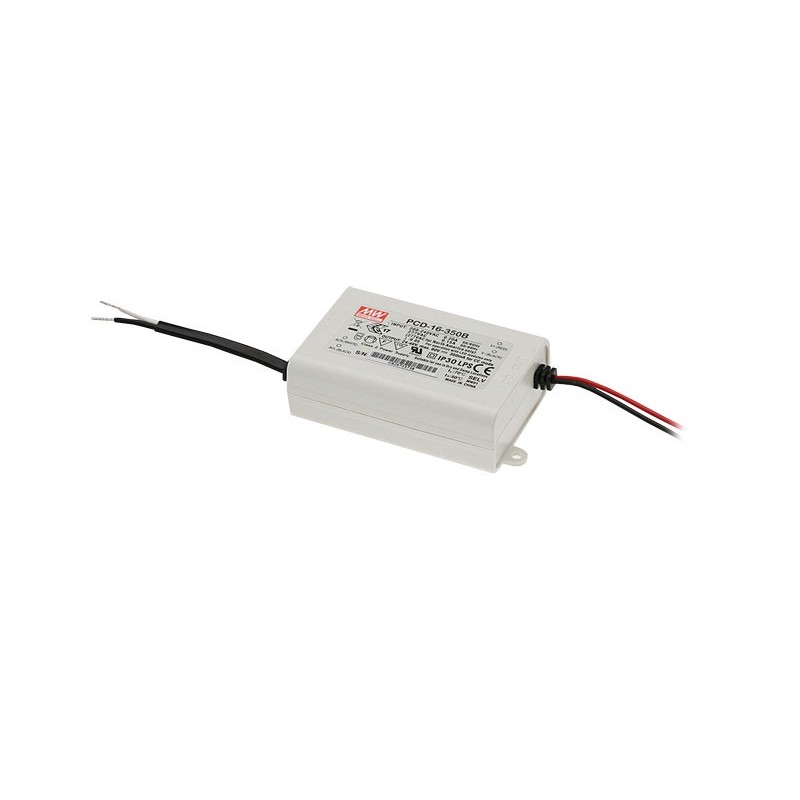

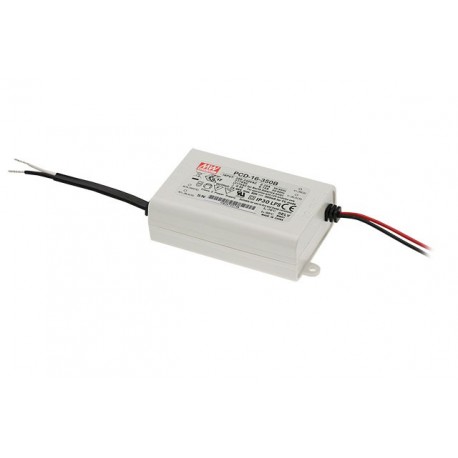

PCD-16-700B MEANWELL AC-DC Single output LED driver Constant Current (CC), Input 180-295VAC, Output 0.7A / 1..
Reference: PCD-16-700B
Manufacturer: MEANWELL
Description:
AC-DC Single output LED driver Constant Current (CC), Input 180-295VAC, Output 0.7A / 16-24VDC, AC phase-cut dimming
Categories:
- MEANWELL > LED DRIVERS > PCD
Brand new product in its original packaging covered by the warranties and certifications provided by MEANWELL
- More Info
- Reviews
MORE INFO
| Name | PCD-16-700B |
|---|---|
| Long Description | LED driver dimmable. Specially designed for powering LEDs directly in a steady stream. Format in plastic boxIP42. Input range180-295Vca47-63Hz. Output in constant current700mA. Range of output voltage16 to 24vdcaccording to demand load. Power:16,8 W Efficiency typical:81%. AdjustablebyTriac. Input class II without grounding. Factor corrector, power>0,9to 230vac at full load. Operating temperature range of caseTcfrom-35ºCup+60ºC. Dimensions (Length x Width x Height):84 x 57 x 29.5 mm 3 years of warranty. Manufacturer: MEAN WELL. The series PCD are LED drivers designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream. With plastic housing designed for lighting applications in interior. Can be controlled via TRIACs (regulators that cut the voltage input). See the list of Triacs supported in the technical data sheet. (Not to be confused with dimmers 1-10V. This driver not only can be adjusted by Triac. Check that your dimmer is a Triac, it must have a Line input and a Line Output for connecting to the driver, not an output 1-10V). Protection against excess temperature and short circuit.Tests burn-in (burn-in test) at 100% load. Have a low cost and a high reliability. |
| Country of Origin | China |
| Stock | Yes |
| Manufacturer | MEAN WELL |
| Product type | LED Driver |
| Format | Box |
| Subformato | IP42 |
| Applications | Lighting |
| Series | PCD-16 |
| Warranty (Years) | 3,00 |
| Height (mm) | 29.50 |
| Width (mm) | 57.00 |
| Long/Background | 84.00 |
| Type of Entry CA | Single-phase |
| AC input Min | 180,00 |
| AC input Max | 295,00 |
| Input frequency | 50 Hz, 60 Hz |
| Input connector | Cable |
| Intensity of Minimum Output (mA) | 700,00 |
| Intensity of Output Maximum (mA) | 700,00 |
| Output current mA | Seven hundred |
| Power (W) | 16,80 |
| Peak Power (W) | 16.8 |
| Dimming | Triac |
| Output connector | Cable |
| Isolation (V) | 3.750,00 |
| Approvals | CE, ENEC, UL |
